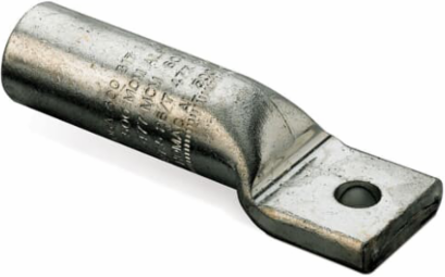

Blackburn AL 2-38 Aluminum Compression Lug One Hole 2-5/8 Inch for AL-CU Conductor
- MPN: AL 2-38
- UPC: 783786693399
- PPN: T-B-AL 2-38
- UNSPSC: 39121409
CAD
$46.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum One-Hole NEMA Lugs, concentric 2 Stranded AL-CU, bolt size 3/8, installing dies TQ, 45, 348, 163, 1/2, 6A. Length 2-5/8 inch. Pad 3/4 inch wide x 1 inch long x 5/32 inch thick. Single Hole .406 inch Diameter. Barrel 59/64 inch. Outside Diameter 17/32 inch. Oxide Inhibitor. Pink Cap.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- Length 2-5/8 inches
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug One Hole
Special FunctionsDual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size#2 STR AWG
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
