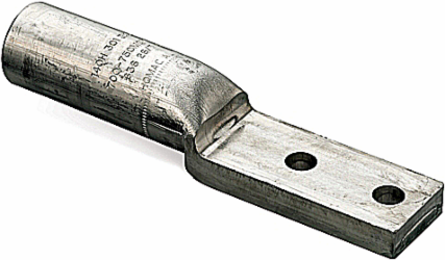

Blackburn AL 350 N Aluminum Two-Hole NEMA Lugs 6-9/16 Inch for 350 Conductor, Rated ANSI C119.4
- MPN: AL 350 N
- UPC: 078378669358
- PPN: T-B-AL 350 N
CAD
$50.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Two-Hole NEMA Lugs - straight lug, concentric 350, 336.4 compact 350, ACSR 266.8 (26/7) and 336.4 (18/1), installing dies 96,299,655,1 1/8-1, 705,13A
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 350 |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum Two-Hole NEMA Lugs |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 6-9/16 inches |
| Material | Aluminum |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 35 lbs. per 100 |
| Outer Dimensions (inches) | 7.75x6.25x7 |
|---|
