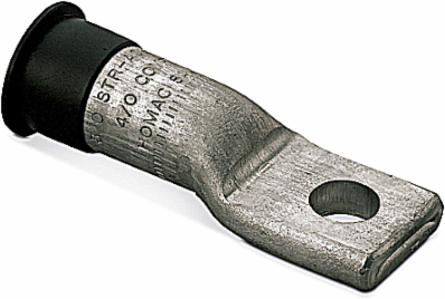

Blackburn SA 2-48 Aluminum One-Hole NEMA Lugs, Size 1-1/2 x 7/8 Inch, ANSI C119.4 Certified
- MPN: SA 2-48
- UPC: 783786749782
- PPN: T-B-SA 2-48
CAD
$14.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum One-Hole Lugs - common die series - straight lugs, conductors - Al or Cu, concentric 1 and 2, compressed 1, compact 1, solid 1/0, ACSR 2, installing dies TU,52,BG,243,5/8,CSA 22
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out Moisture. Marked with Conductor Sizes and Die References for Easy Identification.
- Standard
- ANSI C119.4
- Conductor Range
- #1, #2 Concentric, #1 Compressed, #1 Compact, 1/0 Solid, #2 ACSR
IGCC4668 Wire or cable compression connector
TypeAluminum One-Hole NEMA Lugs
ApplicationDesigned for general applications and for installation on Homac 125 series insulated buses.
Size1-1/2 x 7/8 inch wide
MaterialAluminum
Packaging
- Outer Quantity
- 100
- Weight Uom
- 12.5 lbs. per 100
Outer Dimensions (inches)7.75x6.5x7.25
