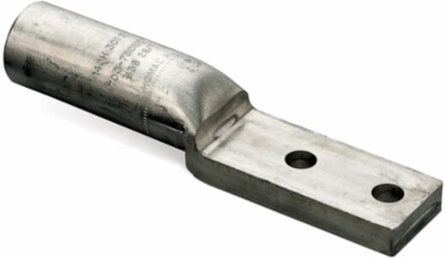

Blackburn AL 700 N 608 Aluminum Two-Hole NEMA Lug 7-3/8 Inch x 1-3/4 Inch for 600-700 kcmil Conductors
- MPN: AL 700 N 608
- UPC: 075114178808
- PPN: T-B-AL 700 N 608
- UNSPSC: 39121409
CAD
$169.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Two-Hole NEMA Lugs - straight lug, 600 - 700 kcmil AL-CU, Compact 700-795, installing dies 125H, 608, 786. Length 7-5/8 inch. Pad 1-3/4 inch wide x 3-1/2 inch long x 29/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 3-1/16 inch x 1-1/2 inch outside Diameter. Oxide Inhibitor. Purple Cap.
Specifications
Additional Information
| Application | General Purpose Lugs for Aluminum and Copper Terminations |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Type | Compression Lug Two Hole |
| Special Functions | Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications. |
| Wire Size | 600 to 700 kcmil700 to 795 kcmil |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20140610 |
| Product Name | ELECTRICAL LUG,<1000V |
| Size | 7-3/8 inch long x 1-3/4 inch wide |
| Standards | ANSI C119.4 |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
