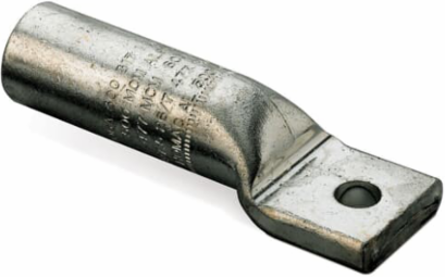

Blackburn AL 1000-58 MS Compression Lug, 1000 kcmil, 7-15/16 Inch Long x 2-7/16 Inch Wide, Tin Plated
- MPN: AL 1000-58 MS
- UPC: 783786474295
- PPN: T-B-AL 1000-58 MS
- UNSPSC: 39121409
CAD
$208.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated, Aluminum Compression Lug, 1000 kcmil, Aluminum and Copper, Bolt Hole Size 11/16 inch Diameter, One Hole NEMA Pad, Moisture Seal. Dies 161, 302, 292, 319, 1 3/4. Length 7-25/32. Pad 1-3/4 inch wide x 1-29/32 inch long x-21/32 inch thick. Barrel 4-11/16 inch Long x 1-27/32 inch Outside Diameter. Oxide Inhibitor. Brown Cap. MS is for Milled Sides.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
Brand / LabelHomac
Effective Date20120601
Product NameELECTRICAL CONNECTOR,>1000V
Size7-15/16 inch long x 2-7/16 inch wide
StandardsANSI C119.4
Wire Size1000 kcmil
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
