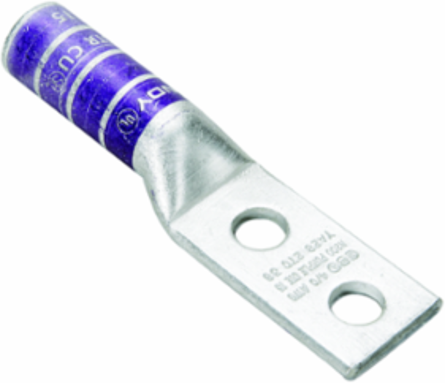

Burndy YA342N Copper Compression Lug, 500 kcmil, 2 Hole, 1/2 Inch Stud, Long Barrel, Tin Plated
- MPN: YA342N
- UPC: 781810506059
- PPN: BUR-502605
CAD
$94.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Lug, 2 Hole w/o Inspection Window, 500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 154 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.55 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.25 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch6.06 in
Dimension - Outside Diameter inch1.06 in
Dimension - Strip Length inch2-5/16
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL486A-UL486B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL486A-UL486B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Material
- Copper
Conductor - Copper Str Size500 kcmil
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin
- Trade Name
- HYLUG™
- UPC
- 781810506059
Color CodeBrown
Die Index20;299
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
PlatedY
Sub BrandHYLUG
TypeLong Barrel, Tin Plated
UPC 12 Digit7818105060599
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
