Blackburn

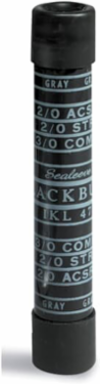

Blackburn IKL34 Aluminum Compression Splice 4 Inch for 2 Conductors, Pre-Insulated, 5-1/2 Inch Sleeve

Aluminum Compression Splice 4 Inch for 2 Conductors, Pre-Insulated, 5-1/2 Inch Sleeve
  • MPN: IKL34
  • UPC: 783786050208
  • PPN: T-B-IKL34
  • UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$24.21/ EA

Description

Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Yellow End: 1/0 ASCR, 1/0 STR, 2/0 CPT, 1/0 CPR. Orange End: #4 ASCR, #3-#4 STR, #2 SOL, Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve

Specifications

Additional Information

Application
For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors. Use as a low tension reducing sleeve for Insulated Conductor.
Connection Type
Compression
Insulation Material
Yes
Mounting Type
None
Product Name
BKB-OVERHEAD SPLICE & TAP CONN
Size
Splice 4 inch, Sleeve 5-1/2 inch
Standards
RUS Listed. Passes the Requirements of ANSI C119.4
Brand / LabelBlackburn
Effective Date19990923
MaterialAluminum
Number of Conductors2
Product TypeCompression Splice Service Entrance
Special FunctionsPre-insulated for fast, easy installation of large home or commercial service entrances. Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor.

Ordering

Country of Origin
Mexico (MX)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
