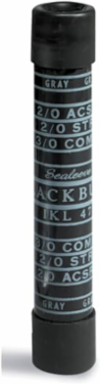

Blackburn IKL46 Aluminum Compression Splice 4 Inch for 3/0 to 2/0 Conductors, 5-1/2 Inch Sleeve
- MPN: IKL46
- UPC: 783786050260
- PPN: T-B-IKL46
- UNSPSC: 39121449
CAD
$25.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Gray End: 2/0 ASCR, 2/0 STR, 3/0 CPT, 2/0 CPR. Yellow End: 1/0 ASCR, 1/0 STR, 2/0 CPT, 1/0 CPR. Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve
Specifications
Additional Information
| Application | For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors. Use as a low tension reducing sleeve for Insulated Conductor. |
|---|---|
| Connection Type | Compression |
| Insulation Material | Yes |
| Mounting Type | None |
| Product Name | BKB-OVERHEAD SPLICE & TAP CONN |
| Size | Splice 4 inch, Sleeve 5-1/2 inch |
| Standards | RUS Listed. Passes the Requirements of ANSI C119.4 |
| Brand / Label | Blackburn |
|---|---|
| Effective Date | 19991027 |
| Material | Aluminum |
| Number of Conductors | 2 |
| Product Type | Compression Splice Service Entrance |
| Special Functions | Pre-insulated for fast, easy installation of large home or commercial service entrances. Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4669 >> Wire or cable compression splice |
|---|
Ordering
| Country of Origin | Mexico (MX)United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
