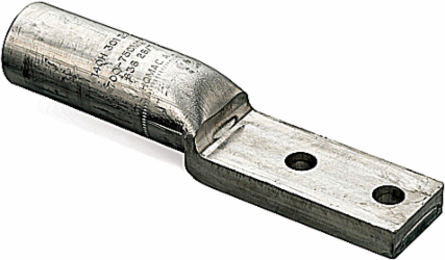

Blackburn AL 750 N 608 TN Aluminum Two-Hole NEMA Lugs, 750 MCM, Length 8-1/4 Inch, Tin-Plated
- MPN: AL 750 N 608 TN
- UPC: 783786694112
- PPN: T-B-AL 750 N 608 TN
CAD
$119.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Multi-Range Die-Less Lugs, Conductor range Al or Cu, 4/0-7500 stranded, bolt size 1/2
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
- Standard
- ANSI C119.4
- Conductor Range
- 750
- Finish
- Tin-Plated
IGCC4668 Wire or cable compression connector
TypeAluminum Two-Hole NEMA Lugs
ApplicationGeneral purpose lugs for Aluminum and Copper terminations.
SizeLength 8-1/4 inches
MaterialAluminum
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.76 lbs. Each
Outer Dimensions (inches)13.5x8.9x7.3
