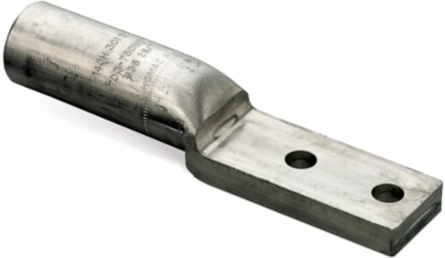

Blackburn AL 954 NMS Tin Plated Aluminum Two-Hole Lug 9-3/8 Inch Long x 1-3/4 Inch Wide, 954 ACSR
- MPN: AL 954 NMS
- UPC: 783786694181
- PPN: T-B-AL 954 NMS
- UNSPSC: 39121409
CAD
$428.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin Plated Aluminum Two-Hole (Slotted 9/32 inch Radius) NEMA Lugs - straight lug, concentric 954 (54/7) ACSR AL-CU, installing dies 161, 292, 302, 319, 1 3/4. Length 9-3/8 inches, Pad 3-5/8 inch x 1-3/4 inch wide. (2) Sloted Holes on 1-3/4 inch center. Barrel Diameter 1-47/64 inch x Barrel Length 4-5/8 inch, Bore 4-7/16 inch. Oxide Inhibitor, Brown Cap. MS is for Milled Sides.
Specifications
Additional Information
| Application | General Purpose Lugs for Aluminum and Copper Terminations |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Type | Compression Lug Two Hole |
| Special Functions | Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications. |
| Surface Finishing | Tin Plated |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Product Name | ELECTRICAL TERMINAL<1000V |
| Size | 9-3/8 inch long x 1-3/4 inch wide |
| Standards | ANSI C119.4 |
| Wire Size | 954 (54/7) ACSR kcmil |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
