Blackburn APA-4 Aluminum Pin Adapters with EPDM Rubber Boot, 1.85 Inch Length, 600V Rating
- MPN: APA-4
- UPC: 075114133340
- PPN: T-B-APA-4
CAD
$78.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

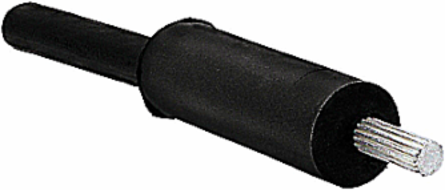

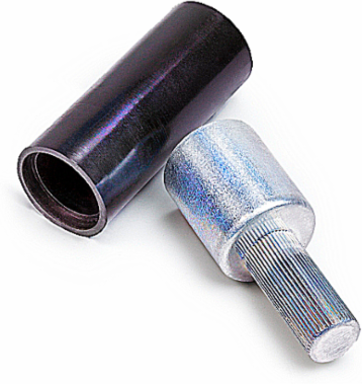

Aluminum Solid Pin Terminals Center Pin Style with Insulating EDPM Rubber Boot, Wire Size #4 AWG, Tin Plated, Overall Length 1.85 Inches (47.0mm), Die Code 50, Tan
Features
- Tooth design to provide greater holding force. One piece connector design for increased reliability.
- UL Listed with T&B and competitor application tooling.
- Pin designed to have greater cross-sectional area than conductor. EPDM rubber or PVC boot provided to eliminate the need for any taping.
- Termination of aluminum or copper conductors to mechanical lugs.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121405 Cable or wire lug
- Brand Name
- Blackburn
- Special Features
- Pin Adapters
- Standard
- UL E63167
- Material
- Aluminum
IGCC4532 Cable or wire lug
TypePin Adapters
ApplicationTermination of aluminum or copper conductors to mechanical lugs.
Voltage Rating600V
ColorTan
Packaging
- Outer Quantity
- 25
- Weight Uom
- 7 lbs. per 100
Outer Dimensions (inches)7.75x6.5x7.5
