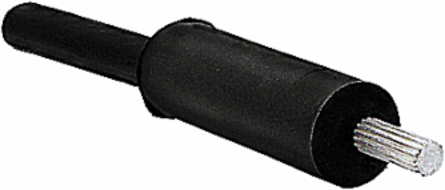

Blackburn APA-1/0 Aluminum Pin Adapters 1/0 AWG, 600V, Insulated Rubber Boot, 2.21 Inch Length
- MPN: APA-1/0
- UPC: 075114133401
- PPN: T-B-APA-1/0
CAD
$69.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

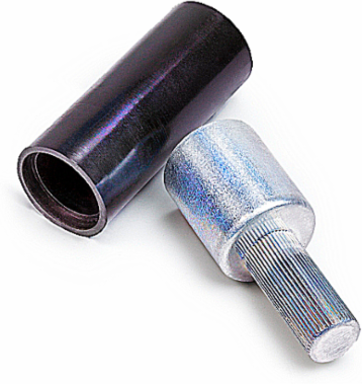

Aluminum Solid Pin Terminals Center Pin Style with Insulating EDPM Rubber Boot, Wire Size 1/0 AWG, Tin Plated, Overall Length 2.21 Inches (56.13mm), Die Code 66, White
Features
- Tooth design to provide greater holding force. One piece connector design for increased reliability.
- UL Listed with T&B and competitor application tooling.
- Pin designed to have greater cross-sectional area than conductor. EPDM rubber or PVC boot provided to eliminate the need for any taping.
- Termination of aluminum or copper conductors to mechanical lugs.
Documentation & Downloads
Specifications
Packaging
- Outer Quantity
- 10
- Weight Uom
- 13 lbs. per 100
Outer Dimensions (inches)8.1x6.8x7.6
North American Specifications (UNSPSC)
- UNSPSC
- 39121405 Cable or wire lug
- Brand Name
- Blackburn
- Special Features
- Pin Adapters
- Standard
- UL E63167
- Material
- Aluminum
IGCC4532 Cable or wire lug
TypePin Adapters
ApplicationTermination of aluminum or copper conductors to mechanical lugs.
Voltage Rating600V
ColorWhite
