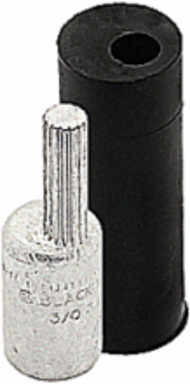

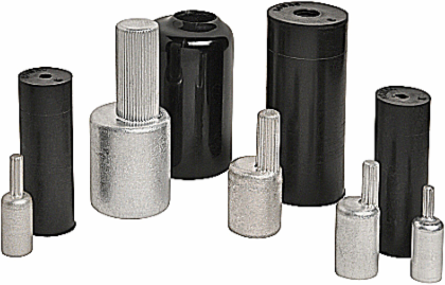

Blackburn OAPA-2/0 Aluminum Pin Adapters 2/0 AWG, 2.21 Inch Length, 600V, White
- MPN: OAPA-2/0
- UPC: 007511413367
- PPN: T-B-OAPA-2/0
CAD
$112.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Solid Pin Terminals Offset Pin Style with Insulating EDPM Rubber Boot, Wire Size 2/0 AWG, Overall Length 2.21 Inches (56.13mm), Tin Plated, Die Code 66, White
Features
- Tooth design to provide greater holding force. One piece connector design for increased reliability.
- UL Listed with T&B and competitor application tooling.
- Pin designed to have greater cross-sectional area than conductor. EPDM rubber or PVC boot provided to eliminate the need for any taping.
- Termination of aluminum or copper conductors to mechanical lugs.
Specifications
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 12.5 lbs. per 100 |
| Outer Dimensions (inches) | 8x6.7x7.7 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121405 Cable or wire lug |
|---|---|
| Brand Name | Blackburn |
| Special Features | Pin Adapters |
| Standard | UL E63167 |
| Material | Aluminum |
| IGCC | 4532 Cable or wire lug |
|---|---|
| Type | Pin Adapters |
| Application | Termination of aluminum or copper conductors to mechanical lugs. |
| Voltage Rating | 600V |
| Color | White |
