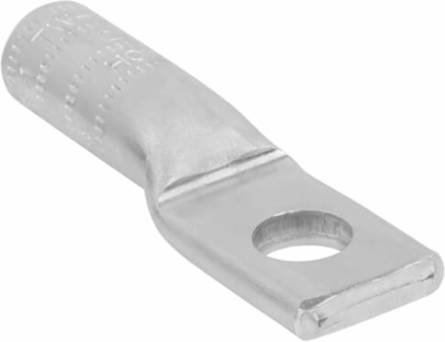

Blackburn AL 400-48 Aluminum Compression Lug 400 kcmil 1-Hole 4-7/8 Inch Length
- MPN: AL 400-48
- UPC: 783786534975
- PPN: T-B-AL 400-48
- UNSPSC: 39121409
CAD
$47.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum One-Hole NEMA Lugs - straight lug, 397.5 - 400 kcmil AL-CU, ACSR 336.4(26/7) and 397.5 (18/1), installing dies 96, 472, 655, 705, 1 1/8-1, 13A, Bolt hole Size 1/2 inch. Length 4-7/8 inch. Pad 1-5/8 inch wide x 1-1/4 inch long x 13/32 inch thick. (1) 17/32 inch Diameter Hole. Barrel 2-1/2 inch long x 1-3/16 inch Outside Diameter. Oxide Inhibitor. Green Cap.
Specifications
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Length 4-7/8 inches
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20120906
Product TypeCompression Lug One Hole
Special FunctionsDual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size400 kcmil397.5 kcmil
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
