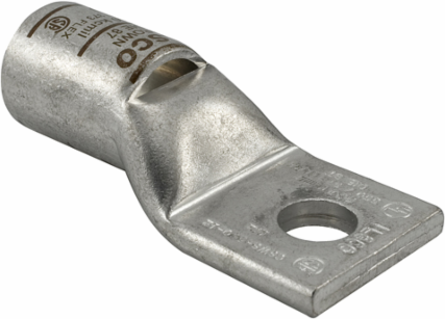

Ilsco CSWS-4-516 Surecrimp Copper Compression Lug, Conductor Size 4, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Ilsco CSWS-4-516 Surecrimp Copper Compression Lug, Conductor Size 4, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-4-516
- UPC: 0783669630374
- PPN: ILC-CSWS-4-516
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$6.97/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.5
- Dimension G (mm)
- 8.9281
- Height (mm)
- 9.4742
- Inside Diameter (mm)
- 6.35
- Mounting Hole Diameter (IN)
- 0.343
- Mounting Hole Spacing (IN)
- 0.352
- Outside Diameter (IN)
- 0.343
- Strip Length (mm)
- 14.2748
- Tang Length (mm)
- 22.225
- Tang Thickness (mm)
- 2.3622
- Tang Width (mm)
- 12.3444
- Width BX (IN)
- 5
Barrel Length (mm)12.7
Height BX (IN)2.25
Inside Diameter (IN)0.25
Length (mm)40.8686
Mounting Hole Diameter (mm)8.7122
Mounting Hole Spacing (mm)8.9408
Outside Diameter (mm)8.7122
Tang Length (IN)0.875
Tang Thickness (IN)0.093
Tang Width (IN)0.486
Weight BX (LB)1.885
Width (mm)12.3444
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- ROHS Indicator
- IND
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-29
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-29
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 4 Sol
- Expanded Conductor Range
- 4 Str - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)4 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366963037
Specifications
- Height
- 0.373 in | 9.4742 mm
- Weight
- 0.0192644192384431 lbs
Length1.609 in | 40.8686 mm
Width0.486 in | 12.3444 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Color
- Silver
Color CodeGray
Environment and Temperature
- Temperature Rating
- 90°C
