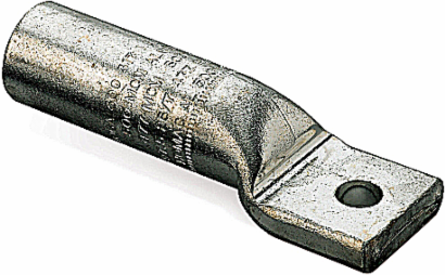

Blackburn AL 500-38 Aluminum Compression Lug 500 KCMIL, 3/8 Inch Bolt, 5.437 Inch Length
- MPN: AL 500-38
- UPC: 078378669389
- PPN: T-B-AL 500-38
CAD
$94.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 500 KCMIL, 3/8 inch Bolt. Length 5.437 inches, Pad 1.50 inch long x 1.750 inch wide x .455 inch thick. Barrel 2.938 inches
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- 500 kcmil
- Insulation
- No
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
SizeLength 5.437 inches, Pad 1.50 inch long x 1.750 inch wide x .455 inch thick. Barrel 2.938 inches
MaterialAluminum
Bolt Size3/8 inch
Packaging
- Outer Quantity
- 25
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
