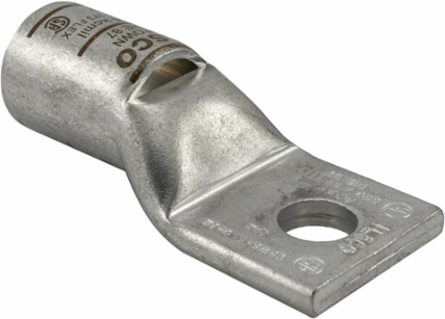

Ilsco CSWS-3-14 Surecrimp Copper Compression Lug, Conductor Size 3, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Ilsco CSWS-3-14 Surecrimp Copper Compression Lug, Conductor Size 3, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-3-14
- UPC: 0783669631692
- PPN: ILC-CSWS-3-14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.47/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.625
- Dimension G (IN)
- 0.321
- Height BX (IN)
- 2.25
- Inside Diameter (IN)
- 0.275
- Length (mm)
- 39.624
- Mounting Hole Diameter (mm)
- 7.1374
- Outside Diameter (IN)
- 0.375
- Strip Length (mm)
- 17.4498
- Tang Length (mm)
- 17.272
- Tang Thickness (mm)
- 2.54
- Tang Width (mm)
- 13.5128
- Width BX (IN)
- 5
Barrel Length (mm)15.875
Dimension G (mm)8.1534
Height (mm)10.287
Inside Diameter (mm)6.985
Mounting Hole Diameter (IN)0.281
Mounting Hole Spacing (mm)0
Outside Diameter (mm)9.525
Tang Length (IN)0.68
Tang Thickness (IN)0.1
Tang Width (IN)0.532
Weight BX (LB)1.49
Width (mm)13.5128
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 486A/B Listed, UL 467 Listed
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-29
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-29
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 3 Str
- Flex Conductor Range
- 4 G,H,I,K,M,DLO
Expanded Conductor Range3 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Flex
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366963169
Specifications
- Height
- 0.405 in | 10.287 mm
- Weight
- 0.0231394821351642 lbs
Length1.56 in | 39.624 mm
Width0.532 in | 13.5128 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
Color
- Color
- Silver
Color CodeWhite
Environment and Temperature
- Temperature Rating
- 90°C
