Blackburn AL 605 NSC Aluminum Compression Lug 636-700 kcmil, 8.750 Inch Length, Dual Rated

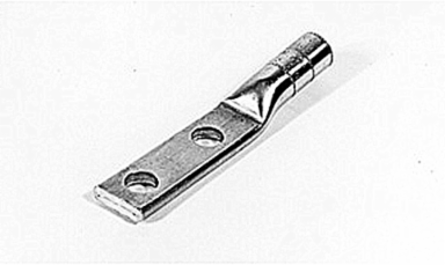

Aluminum Compression Lug 636-700 kcmil, 8.750 Inch Length, Dual Rated
  • MPN: AL 605 NSC
  • PPN: T-B-AL 605 NSC

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$118.53/ EA

Description

Aluminum Compression Lug, 636 - 700 kcmil, Aluminum and Copper, 605 24/7 ACSR, Bolt Holes .562 inch Diameter, Two Hole NEMA Pad. Length 8.750 inches, Barrel 4.188 inches, Pad 2.173 inch wide, .685 inch thick, 3.188 inch long. Dies 1 5/8 140H 343 474 27AH. Bare Finish.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
Standard
ANSI C119.4
Conductor Range
636 - 700 kcmil
Insulation
No
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
SizeLength 8.750 inches, Barrel 4.188 inches, Pad 2.173 inch wide, .685 inch thick, 3.188 inch long.
MaterialAluminum
Bolt Size1/2 inch

Packaging

Outer Quantity
20
Weight Uom
1.29 lbs. Each
Outer Dimensions (inches)13.8x9.1x8.6
