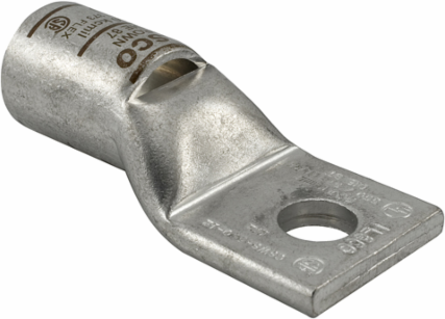

ILSCO CSWS-750-12 Surecrimp Copper Compression Lug, Conductor Size 750, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-750-12
- UPC: 783669648973
- PPN: ILC-CSWS-750-12
CAD
$103.41
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surecrimp Copper Compression Lug, Conductor Size 750, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.358 in | 34.4932 mm |
|---|---|
| Weight | 0.570867819975119 lbs |
| Length | 3.652 in | 92.7608 mm |
|---|---|
| Width | 1.901 in | 48.2854 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 1.5 |
|---|---|
| Dimension G (IN) | 0.546 |
| Height BX (IN) | 2 |
| Inside Diameter (IN) | 1.031 |
| Length (mm) | 92.7608 |
| Mounting Hole Diameter (IN) | 0.562 |
| Mounting Hole Spacing (mm) | 0 |
| Outside Diameter (mm) | 33.3502 |
| Tang Length (IN) | 1.25 |
| Tang Thickness (IN) | 0.282 |
| Tang Width (IN) | 1.901 |
| Weight BX (LB) | 3.6752 |
| Width (mm) | 48.2854 |
| Barrel Length (mm) | 38.1 |
|---|---|
| Dimension G (mm) | 13.8684 |
| Height (mm) | 34.4932 |
| Inside Diameter (mm) | 26.1874 |
| Mounting Bolt/Stud Size (mm) | 304.8 |
| Mounting Hole Diameter (mm) | 14.2748 |
| Outside Diameter (IN) | 1.313 |
| Strip Length (mm) | 39.6748 |
| Tang Length (mm) | 31.75 |
| Tang Thickness (mm) | 7.1628 |
| Tang Width (mm) | 48.2854 |
| Width BX (IN) | 6.1875 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| NEBS Rating | Level 3 |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | No |
| ILSCOs Die Catalog Number | ILD-106 |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Slotted | No |
| Undrilled | No |
| Barrel Type | Standard |
|---|---|
| Connection | Compression |
| Flared End | No |
| ILSCOs Die Index Number | I-106 |
| Narrow Tang | No |
| Sight Window | Yes |
| Tang End Shape | Square |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 750 kcmil |
|---|---|
| Flex Conductor Range | 600 G,H,I,M 646.4 DLO |
| Expanded Conductor Range | 750 kcmil - 500 kcmil |
|---|
Additional Technical Specifications
| Conductor Type | Flex, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 6 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366964897 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/2 |
|---|
Color
| Color | Silver |
|---|
| Color Code | Black |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
