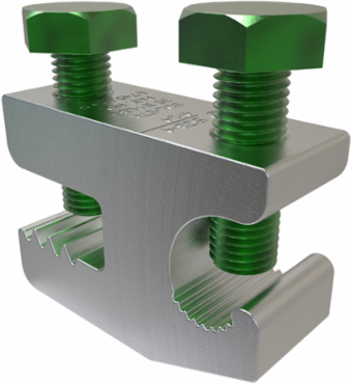

ILSCO SGB-4 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL, CSA
- MPN: SGB-4
- UPC: 783669960259
- PPN: ILC-SGB-4
CAD
$6.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.241 in | 31.5214 mm |
|---|---|
| Weight | 0.042 lbs |
| Length | 1.375 in |
|---|---|
| Width | 0.5 in | 12.7 mm |
Dimensions
| Drive Size Main | 7/16 |
|---|---|
| Height BX (IN) | 2.75 |
| Weight BX (LB) | 3.085 |
| Width (mm) | 12.7 |
| Drive Type Main | External Hex |
|---|---|
| Height (mm) | 31.5214 |
| Width BX (IN) | 5 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 2703 Recognized, UL 467 Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 667P |
| UL File Number | E34440, E354420 Vol. 1 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Ports / Wireways | 2 |
| Number of Conductors | 2 |
|---|---|
| Wire Orientation | Parallel |
Material and Finish
| Clamping Hardware Finish | Nickel Strick, Zinc, Green Dye |
|---|---|
| Conductor Material | Aluminum, Copper |
| Material | Aluminum |
| Wire Binding Hardware Material | Stainless steel |
| Clamping Hardware Material | Stainless steel |
|---|---|
| Connector Finish | Tin |
| Wire Binding Hardware Finish | Nickel Strick, Zinc, Green Dye |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 4 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 4 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 4 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366996025 |
| Carton Quantity Description | STD PACK QTY 50 |
|---|---|
| NEMA Code | S-573-2 |
Bolt and Screw Sizes
| Clamping Bolt Size | 7/16 |
|---|---|
| Number of Wire Binding Screws per Port | 1 |
| Wire Binding Torque | 35 |
| Clamping Bolt Torque | 75 |
|---|---|
| Wire Binding Screw Size | 1/4 |
