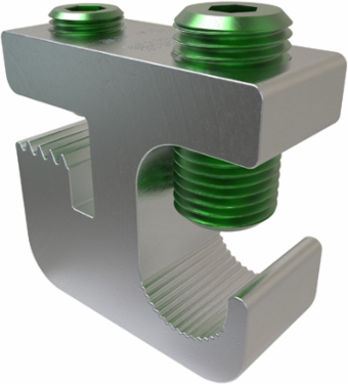

ILSCO SGB-250 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 250-6, Tin Plated, UL, CSA
- MPN: SGB-250
- UPC: 783669960358
- PPN: ILC-SGB-250
CAD
$28.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 250-6, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.703 in |
|---|---|
| Weight | 0.233 lbs |
| Length | 1.81 in |
|---|---|
| Width | 0.75 in |
Dimensions
| Drive Size Main | 3/16 |
|---|---|
| Height BX (IN) | 3.5 |
| Width BX (IN) | 5.875 |
| Drive Type Main | Internal Hex |
|---|---|
| Weight BX (LB) | 11.65 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 467 Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 667P |
| UL File Number | E34440 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Ports / Wireways | 2 |
| Number of Conductors | 2 |
|---|---|
| Wire Orientation | Parallel |
Material and Finish
| Clamping Hardware Finish | Nickel Strick, Zinc, Green Dye |
|---|---|
| Conductor Material | Copper, Aluminum |
| Material | Aluminum |
| Wire Binding Hardware Material | Stainless steel |
| Clamping Hardware Material | Stainless steel |
|---|---|
| Connector Finish | Tin |
| Wire Binding Hardware Finish | Nickel Strick, Zinc, Green Dye |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 250 kcmil - 6 Str |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 250 kcmil - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366996035 |
| Carton Quantity Description | STD PACK QTY 50 |
|---|---|
| NEMA Code | S-573-6 |
Bolt and Screw Sizes
| Clamping Bolt Size | 9/16-18 |
|---|---|
| Wire Binding Screw Size | 7/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 250 kcmil - 4 AWG = 150, 6 AWG = 75 |
