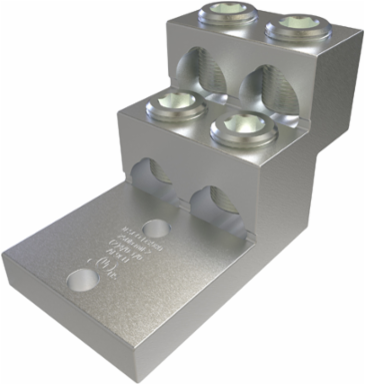

ILSCO PBMW-4-750-38 Aluminum Panelboard Lug, Multi Wire, 4 Ports, Conductor Range 750-2, 3/8 Inch Bolt Size

Aluminum Panelboard Lug, Multi Wire, 4 Ports, Conductor Range 750-2, 3/8 Inch Bolt Size
  • MPN: PBMW-4-750-38
  • UPC: 783669184341
  • PPN: ILC-PBMW-4-750-38

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$310.10/ EA

Description

Aluminum Panelboard Lug, Multi Wire, 4 Ports, Conductor Range 750-2, 3/8 Inch Bolt Size

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Dimension G (IN)
0.38
Drive Size Main
1/2
Height BX (IN)
3.125
Length (mm)
124.714
Mounting Hole Diameter (IN)
0.406
Mounting Hole Spacing (IN)
1.38
Tang Length (IN)
2.35
Tang Thickness (IN)
0.625
Tang Width (IN)
2.62
Weight BX (LB)
1.2994
Width (mm)
66.548
Dimension G (mm)9.652
Drive Type MainInternal Hex
Height (mm)75.184
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Mounting Hole Spacing (mm)35.052
Tang Length (mm)59.69
Tang Thickness (mm)15.875
Tang Width (mm)66.548
Width BX (IN)3.875

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL File Number
E6207
UL / CULUS SpecificationUL/cUL 486A/B Listed

Additional Class Attributes

Connection
Mechanical
Mounting Hole Type
Thru
Number of Mounting Holes
2
Number of Ports / Wireways
4
Contains DE-OX®No
Number of Conductors8, 4
Number of Poles1
Wire OrientationPerpendicular

Material and Finish

Conductor Material
Aluminum, Copper
Material
Aluminum
Wire Binding Hardware Material
Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
750 kcmil - 2 Str
Wire Combinations
(2) 4/0 Str - 1/0 Str
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 2 Str

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedYes
UPC Code78366918434

Specifications

Height
2.96 in | 75.184 mm
Weight
1.166 lbs
Length4.91 in | 124.714 mm
Width2.62 in | 66.548 mm

Bolt and Screw Sizes

Mounting Bolt/Stud Size
3/8
Wire Binding Screw Size
15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500

Color

Color
Silver

Environment and Temperature

Temperature Rating
90°C
