ILSCO PBMW-6-750-38 Aluminum Panelboard Lug, 6 Ports, Conductor Range 750-2, 3/8 Inch Bolt Size, Tin Plated
- MPN: PBMW-6-750-38
- UPC: 783669184358
- PPN: ILC-PBMW-6-750-38
CAD
$416.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

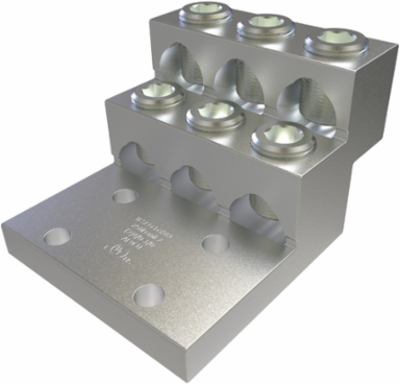

Aluminum Panelboard Lug, 6 Ports, Conductor Range 750-2, 3/8 Inch Bolt Size, Tin Plated
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.96 in | 75.184 mm |
|---|---|
| Weight | 1.685 lbs |
| Length | 4.91 in | 124.714 mm |
|---|---|
| Width | 3.93 in | 99.822 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.38 |
|---|---|
| Drive Size Main | 1/2 |
| Height BX (IN) | 3.125 |
| Length (mm) | 124.714 |
| Mounting Hole Diameter (IN) | 0.406 |
| Mounting Hole Spacing (IN) | 1.38 |
| Tang Length (IN) | 2.35 |
| Tang Thickness (IN) | 0.625 |
| Tang Width (IN) | 3.93 |
| Weight BX (LB) | 1.8189 |
| Width (mm) | 99.822 |
| Dimension G (mm) | 9.652 |
|---|---|
| Drive Type Main | Internal Hex |
| Height (mm) | 75.184 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.3124 |
| Mounting Hole Spacing (mm) | 35.052 |
| Tang Length (mm) | 59.69 |
| Tang Thickness (mm) | 15.875 |
| Tang Width (mm) | 99.822 |
| Width BX (IN) | 3.875 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL File Number | E6207 |
| UL / CULUS Specification | UL/cUL 486A/B Listed |
|---|
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 4 |
| Number of Ports / Wireways | 6 |
| Contains DE-OX® | No |
|---|---|
| Number of Conductors | 12, 6 |
| Number of Poles | 1 |
| Wire Orientation | Perpendicular |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 750 kcmil - 2 Str |
|---|---|
| Wire Combinations | (2) 4/0 Str - 1/0 Str |
| Conductor Range CU Stranded (Primary, run, main, line) | 750 kcmil - 2 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366918435 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|---|
| Wire Binding Screw Size | 15/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 500 |
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
