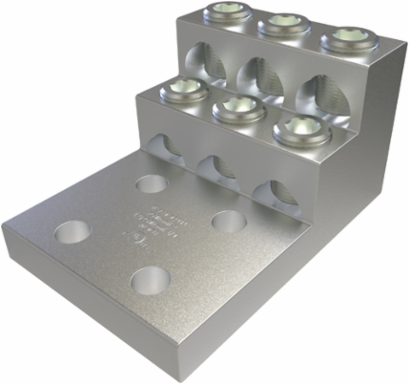

ILSCO PBMW-6-750-12 Aluminum Panelboard Lug, 6 Ports, Conductor Range 750-2, 1/2 Inch Bolt Size, Tin Plated
- MPN: PBMW-6-750-12
- UPC: 783669184389
- PPN: ILC-PBMW-6-750-12
CAD
$416.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Panelboard Lug, 6 Ports, Conductor Range 750-2, 1/2 Inch Bolt Size, Tin Plated
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3 in | 76.2 mm
- Weight
- 2.268 lbs
Length5.687 in | 144.4498 mm
Width3.93 in | 99.822 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.625
- Drive Size Main
- 1/2
- Height BX (IN)
- 3.75
- Length (mm)
- 144.4498
- Mounting Hole Diameter (IN)
- 0.562
- Mounting Hole Spacing (IN)
- 1.75
- Tang Length (IN)
- 3.125
- Tang Thickness (IN)
- 0.75
- Tang Width (IN)
- 3.93
- Weight BX (LB)
- 2.4636
- Width (mm)
- 99.822
Dimension G (mm)15.875
Drive Type MainInternal Hex
Height (mm)76.2
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (mm)44.45
Tang Length (mm)79.375
Tang Thickness (mm)19.05
Tang Width (mm)99.822
Width BX (IN)6
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL/cUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 4
- Number of Ports / Wireways
- 6
Contains DE-OX®No
Number of Conductors12, 6
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 2 Str
- Wire Combinations
- (2) 250 kcmil - 1/0 Str
Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedYes
UPC Code78366918438
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Wire Binding Screw Size
- 15/16
Number of Wire Binding Screws per Port1
Wire Binding Torque500
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
