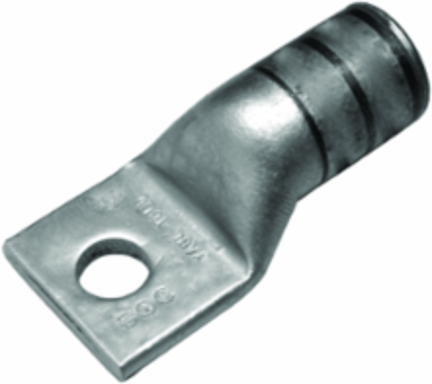

Burndy YAG2CLTC14FXBR Non-insulated Tin Plated Terminal Connector, 0.27 Inch Hole Size, 2 AWG, 35 kV
- MPN: YAG2CLTC14FXBR
- UPC: 781810667477
- PPN: BUR-10059054
CAD
$32.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CULUG- 2FLX-1/4-BARE
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 5/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 42 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.68 in |
| Dimension - Z inch | 0.33 in |
| Dimension - B Length inch | 0.63 in |
|---|---|
| Dimension - D inch | 0.64 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 1.64 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 11/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 2 (150/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 2 AWG |
| Conductor - Copper Flex H Size | 2 AWG |
| Conductor - Copper Flex I Size | 2 AWG |
| Conductor - Copper Flex K Size | 2 AWG |
| Conductor - Copper Flex M Size | 2 AWG |
| Conductor - Copper Str Navy Size | 60 (37) Navy |
| Conductor - Copper Str Size | 2 AWG |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 2 (150/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 2 AWG |
| Conductor - Copper Flex H Size Range | 2 AWG |
| Conductor - Copper Flex I Size Range | 2 AWG |
| Conductor - Copper Flex K Size Range | 2 AWG |
| Conductor - Copper Flex M Size Range | 2 AWG |
| Conductor - Copper Str Navy Size Range | 60 (37) Navy |
| Conductor - Copper Str Size Range | 2 AWG |
| Conductor - CopperWeld Str Size Range | 2 A AWG-2 P AWG |
General
| Color Code | Brown |
|---|---|
| Die Index | 10 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810667477 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Temperature Rating | 194 |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818106674777 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
