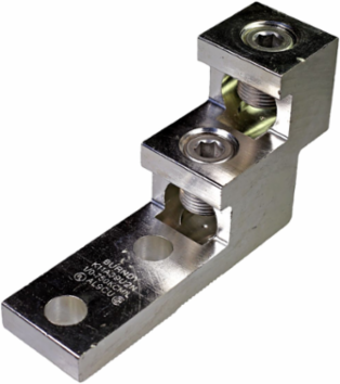

Burndy K11A39U2N Aluminum Universal Terminal, 2 Hole, 1/0 AWG-750 kcmil, 3/8 Inch Stud, 600 Volt Rated
- MPN: K11A39U2N
- UPC: 621945455986
- PPN: BUR-26000089
- UNSPSC: 39121117
CAD
$126.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Universal Terminal, 2 Hole, Two: 1/0 AWG (Str)-750 kcmil, 1/2" Stud, NEMA Spacing, 2 Screws, Al/Cu Rated, Tin Plated.
Features
- AL9CU Dual Rated for both copper an aluminum conductor
- Listed to UL Wire Connector Standard UL486A-486B
- 1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing)
- Range Taking conductor port
Specifications
Additional
| Voltage | 600 Volt |
|---|---|
| Conductor Type | Aluminum Stranded; Copper Stranded; Copper Solid |
| Number of Holes | 4 |
| Stud Size | 3/8 in. |
| Hole Size | 0.56 in |
| Width | 1.5 in |
| Material | Aluminum |
| Connector Type | Stacked |
| CSA Approved | Yes |
| Country of Origin | US |
| Conductor Size Range | 1/0 AWG-750 kcmil |
|---|---|
| Temperature Rating | 194 F |
| Number of Screws | 2 |
| Screw Size | 15/16 in. |
| Length Overall | 5.69 in |
| Height | 3 in |
| Plating Type | Tin - Electro Plated |
| UL Listed | UL 486A-486B |
| Compliance | Prop 65 Compliant |
| Type | Bolted Lugs & Terminals |
