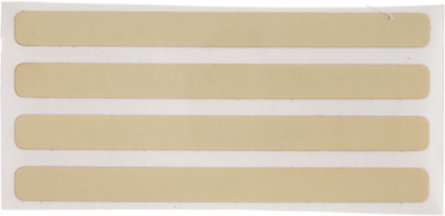

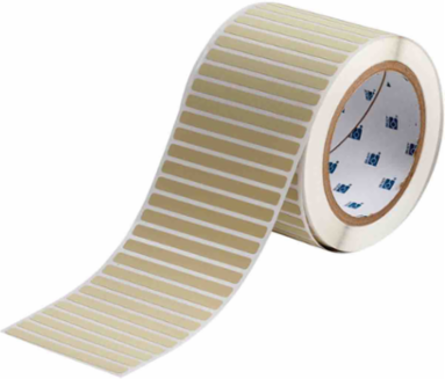

Brady THT-16-724-2.5 Amber Polyimide Labels 0.25 Inch H x 3 Inch W, Roll of 2500 Labels
- MPN: THT-16-724-2.5
- UPC: 754473846152
- PPN: BRD-THT-16-724-2.5
- UNSPSC: 55121612
CAD
$1245.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amber high temperature polyimide with an ultra-durable adhesive withstands the extreme wash protocol and cleaning chemicals used in printed circuit board manufacturing.
Features
- Withstands multiple cycles of harsh condition washes for printed circuit boards and electronic component preprocess labeling
- Resists high temperatures up to 572° F (300° C)
- Fulfills requirements for MIL-STD-202G Method 215K and SAE AS81531 Marking of Electrical Insulating Material when used with R4300 series ribbons

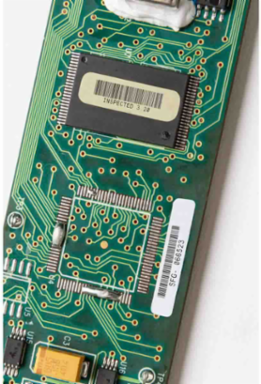

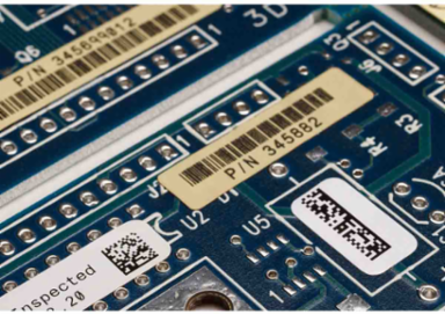

- Survives on the top or bottom side of printed circuit boards through the solder process
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Component and Equipment Labeling
- Brand Name
- Brady®
- Color
- Amber
- Diagram
- Icon 3 (triangle)
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R4300; R7950
- Suggested Ribbon Series
- R4300
- Total Quantity
- 2500
- Adhesive (Y/N)
- Yes
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 76.20 mm W x 6.35 mm H
- Height (in/ft/yd)
- 0.25 in
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 3 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 6.35 mm
- Sign Size-General
- 0.25 in x 3 in
- Thickness (in/ft/yd)
- 0.0044 in
- Vertical Repeat
- 0.375 in
- Web Width (mm/cm/m)
- 81.28 mm
- Width (mm/cm/m)
- 76.2 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-STD-202G; SAE-AS-81531
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll2500
Recommended RibbonIP-R4300; R4300
ShapeRectangle
Total Qty per Pack2500 Label(s) / Roll
Trade NameUltraTemp®
Adhesive TypePermanent Acrylic
Brady Material NumberB-724
MaterialPolyimide
SAP B-NumberB-724
Dimensions0.25 in H x 3 in W
Dimensions 20.25 in H x 3 in W
Height (mm/cm/m)6.35 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)6.35 mm H x 76.2 mm W
Printable Area Width (mm/cm/m)76.2 mm
Size - Width (mm)76.20 mm
Thickness (mm/cm/m)0.112 mm
Vertical Repeat (mm)9.53 mm
Width (in/ft/yd)3 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
