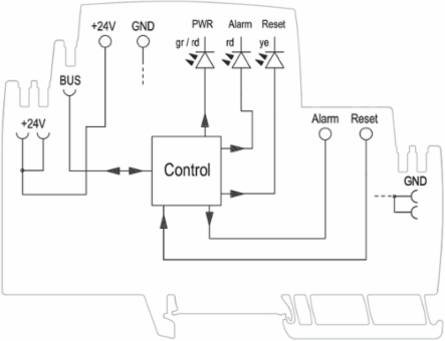

Weidmuller 2082540000 Supply Module 24V DC, 125mm Height, 2 Terminals, IP20 Protection
- MPN: 2082540000
- PPN: WDM-2082540000
CAD
$71.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Supply module, 24 V DC
Documentation & Downloads
Specifications
General Data
- Conformal coating
- Yes
- Monitoring function
- Yes
- Power loss, idling
- 384 mW
- Protection degree
- IP20
- Surge protection input, output, bus
- Suppressor diode
Control inputsReset
Operating temperature-25 °C...55 °C
Power loss, nominal load500 mW
Surge protection input, busSuppressor diode
Surge voltage categoryIII
Probability Of Failure
- MTTF
- 500 Years
Signalling
- LED green
- Operating voltage OK
- Transistor output, positive-switching
- Alarm
Red LEDAlarm
Yellow LEDExternal reset is signalled, Alarm is signalled
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, flexible , min.
- 0.75 mm²
- Conductor cross-section, rigid , min.
- 0.75 mm²
- Number of terminals
- 2 (+,−)
- Wire connection cross section, flexible (input), max.
- 16 mm²
Conductor cross-section, AWG/kcmil , min.18
Conductor cross-section, rigid , max.10 mm²
Connection systemPUSH IN
Screwdriver blade1.2 x 6.5
Approvals
- Approvals
- ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, LLOYDSREG, RINA, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 12.2 mm
- Height
- 125 mm
- Depth
- 96.5 mm
- Net weight
- 78 g
Width (inches)0.48 inch
Height (inches)4.921 inch
Depth (inches)3.799 inch
Input
- Connection system
- PUSH IN
- Current consumption (idle)
- 20 mA
- Input fuse (internal)
- No
- Surge protection
- Suppressor diode
Current consumption (full load)120 mA
DC input voltage range18…30 V DC
Rated input voltage24 V DC
max. admissible residual ripple at the input100 mVpp
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
Output
- Connection system
- PUSH IN
Surge protectionSuppressor diode
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 1.5 mm²
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Surge voltage category
- III
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 1.5 mm²
- Conductor cross-section, rigid , max.
- 1.5 mm²
- Connection system
- PUSH IN
- Screwdriver blade
- 0.4 x 2.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.14 mm²
Conductor cross-section, rigid , min.0.14 mm²
Number of terminals2 (I< / Alarm)
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...55 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- DEMKO17ATEX1870X
- Certificate no. (cULus)
- E258476
Certificate No. (IECEX)IECEXULD17.0018X
