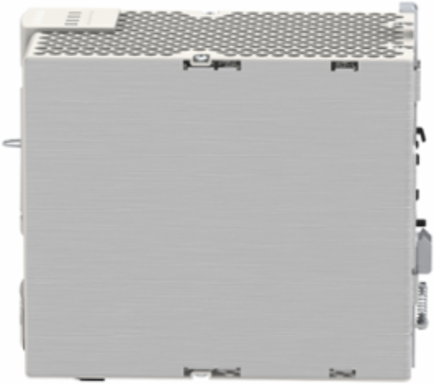

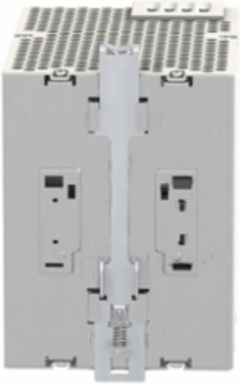

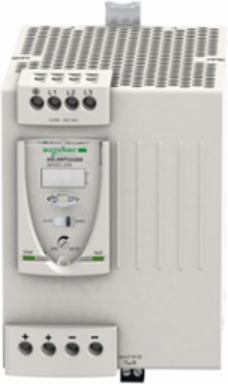

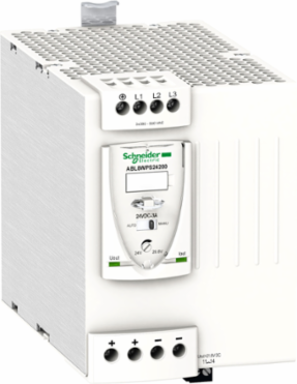

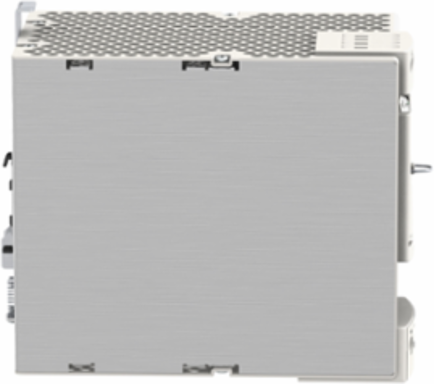

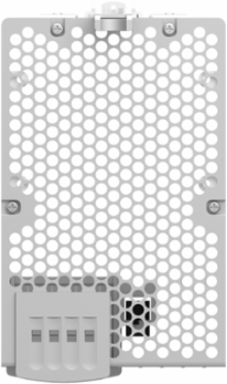

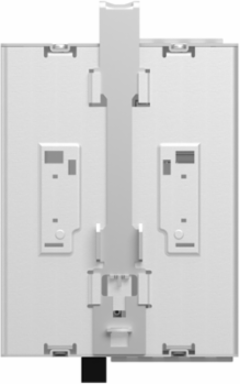

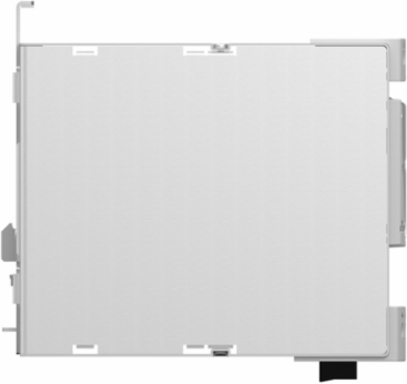

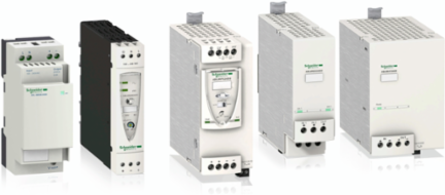

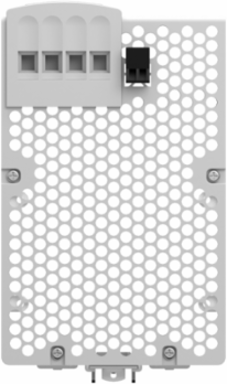

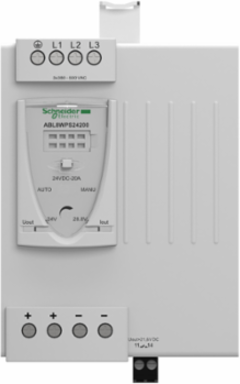

Schneider Electric ABL8WPS24200 Regulated Switch Mode Power Supply, 380-500V AC, 24V, 20A, 480W
- MPN: ABL8WPS24200
- PPN: SCH-ABL8WPS24200
CAD
$647.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs easily on DIN rail and is 95mm-wide. It is a power supply for industrial use, rail mounting. It conforms to CSA C22.2 No 60950-1 and UL 508. It is certified with CCSAus, EAC, UL and RCM. The GV2ME06 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Germany, France, Philippines, United States |
|---|

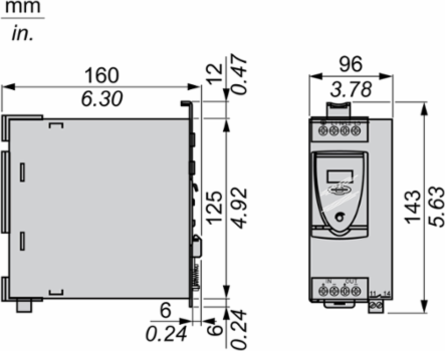

| Depth | 160 mm |
|---|
Complementary Attributes
| Rated Power In W | 480 W |
|---|
Important Information Attributes
| Environmental Characteristic | EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3safety conforming to EN 61204-4, safety conforming to IEC 60950-1 |
|---|---|
| Supply | SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41 |
| Connections - Terminals | removable screw terminal block 2 x 2.5 mm², diagnostic relayscrew type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connectionscrew type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connection, screw type terminals 4 x 0.5...4 x 10 mm², 22 AWG...8 AWG) output connection |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI0612002EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | ABL8W |
| Efficiency | 92 % |
| Inrush Current | 25 A |
| Operating Position | vertical |
| Power Dissipation In W | 38.4 W |
| Power Supply Type | regulated switch mode |
| Product Or Component Type | power supply |
| Range Of Product | Modicon Power Supply |
| Status Led | 1 LED (green and red) output voltage1 LED (green, red and orange) output current |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 143 mm |
| Anti-harmonic Filter | low frequency harmonic currents |
| Package Weight(Lbs) | 2.145 kg |
| Warranty (In Months) | 18 |
| Mounting Support | 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail |
|---|---|
| Certificate Agency | cCSAus, EAC, UL, RCM |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Dielectric Strength | 3500 V with between input and ground4000 V with between input and output500 V with between output and ground |
| Efficiency At Full Load | 320...550 V AC |
| Marking | CE |
| Permissible Temporary Current Boost | 1.5 x In for 4 s) |
| Power Factor | 0.65 at 24 V DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | power factor correction filter IEC 61000-3-2 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP0612002EN |
| Width Nominal | 96 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504409530 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0612002EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0612002EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP0612002EN |
General Attributes
| Product Or Component Type | power supply |
|---|---|
| Range Of Product | Modicon Power Supply |
| Provided Equipment | power factor correction filter IEC 61000-3-2 |
|---|
ETIM
| ETIM 8 | EC002540 |
|---|
| ETIM 9 | EC002540 |
|---|
Output Attributes

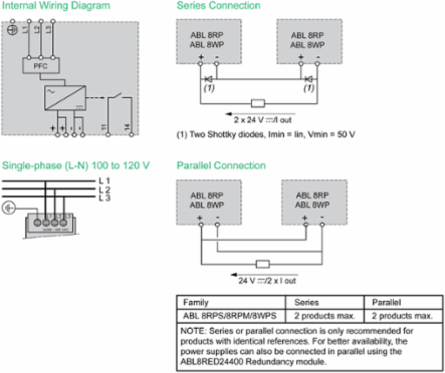

| Output Coupling | series, parallel |
|---|---|
| Output Voltage | 24 V DC |
| Power Supply Output Current | 20 A |
| Output Protection Type | against overload, protection technology: manual or automatic resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic resetagainst undervoltage, protection technology: tripping if U < 21.6 Vthermal, protection technology: automatic reset |
|---|---|
| Output Voltage Limits | 24...28.8 V adjustable |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Efficiency | 92 % |
|---|---|
| Input Voltage | 380...500 V AC three phase L1, L2, L3 |
| Efficiency At Full Load | 320...550 V AC |
|---|
