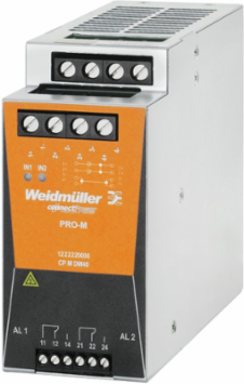

Weidmuller 1222220000 Switch-Mode Power Supply, 24V DC, 48A, 130mm Height, IP20 Protection
- MPN: 1222220000
- PPN: WDM-1222220000
CAD
$263.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switch-Mode Power Supply, 24V DC, 48A, 130mm Height, IP20 Protection
Specifications
General Data
- Degree of efficiency
- > 97% @ 24 V input voltage
- MTBF
- > 500,000 h acc. to IEC 1709 (SN29500
- Operating temperature
- -25 °C...70 °C
Humidity5...95 %, no condensation
Mounting position, installation noticeHorizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Protection degreeIP20
Signalling
- Floating contact
- Yes
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, flexible , min.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.5 mm²
- Wire connection cross section, flexible (input), max.
- 10 mm²
Conductor cross-section, AWG/kcmil , min.22
Conductor cross-section, rigid , max.16 mm²
Number of terminals4 (1+, 2+, 1-, 2-)
Approvals
- Institute (GERMLLOYD)
- icon
- Institute (cULus)
- icon
- Approvals
- CCSAUS
- Approvals
- CULUS
- Approvals
- GERMLLOYD
- UL File Number Search
- E258476
Certificate No. (GERMLLOYD)94767-10
Certificate no. (cULus)E258476
ApprovalsCE
ApprovalsEAC
ROHSConform
Dimensions And Weights
- Width
- 60 mm
- Height
- 130 mm
- Depth
- 150 mm
- Net weight
- 867 g
Width (inches)2.362 inch
Height (inches)5.118 inch
Depth (inches)5.905 inch
General Ordering Data
- Type
- CP M DM40
- Version
- Power supply, switch-mode power supply unit
- Qty.
- 1 pc(s).
Order No.1222220000
GTIN (EAN)4050118005455
Electrical Safety (Applied Standards)
- Electrical machine equipment
- Acc. to EN60204
- Safety extra-low voltage
- SELV acc. to EN60950, PELV acc. to EN60204
For use with electronic equipmentAcc. to EN50178 / VDE0160
Emc / Shock / Vibration
- Noise emission acc. to EN55022
- Class B
- Interference immunity test acc. to
- EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)
Vibration resistance IEC 60068-2-61 g according to EN50178
Shock resistance IEC 60068-2-2715 g In all directions
Input
- DC input voltage range
- 18…30 V DC
- Rated input voltage
- 24 V DC
Input current2 x 20 A or 1 x 40 A
Wire connection methodScrew connection
Classifications
- ETIM 5.0
- EC002850
- eClass 6.2
- 27-04-92-01
- eClass 8.1
- 27-04-92-01
- eClass 9.1
- 27-04-07-01
ETIM 6.0EC002540
eClass 7.127-04-92-01
eClass 9.027-04-92-01
Output
- Continuous output current @ U
- 48 A @ 45 °C, 45 A @ 55 °C, 30 A @ 70 °C
- Output voltage
- Input voltage - 0.7 V
- Rated output voltage
- 24 V DC ± 1 %
- Voltage monitoring
- Yes, In both inputs
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, flexible , max.
- 10 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Number of terminals
- 4 (3 +, 4 +, 3 -, 4 -)
Output current, max.48 A
Rated (nominal) output current @ U40 A @ 60 °C
Switching thresholds21.6 V DC, relay is on for Power Good, 20.4 V DC, relay is off for Power Fail
Wire connection methodScrew connection
Conductor cross-section, AWG/kcmil , min.22
Conductor cross-section, flexible , min.2.5 mm²
Conductor cross-section, rigid , min.0.5 mm²
Insulation Coordination
- Class of protection
- III, with no ground connection, for SELV
- Pollution severity
- 2
Insulation voltage0.5 kV
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 6
- Conductor cross-section, flexible , max.
- 10 mm²
- Conductor cross-section, rigid , max.
- 16 mm²
- Number of terminals
- 4 (3 +, 4 +, 3 -, 4 -)
Conductor cross-section, AWG/kcmil , min.22
Conductor cross-section, flexible , min.2.5 mm²
Conductor cross-section, rigid , min.0.5 mm²
Temperatures
- Humidity
- 5...95 %, no condensation
- Storage temperature
- -40 °C...85 °C
Operating temperature-25 °C...70 °C
