Weidmuller 2495070000 maxGUARD Potential Distributor, 4.921 Inch Height, 12 A Load, IP20 Protection
- MPN: 2495070000
- PPN: WDM-2495070000
CAD
$7.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Potential distributor
Documentation & Downloads
Specifications
General Data
- Conformal coating
- Yes
- Protection degree
- IP20
Current load per contact point12 A
Total current load per potential12 A
Probability Of Failure
- MTTF
- 50,000 Years
Approvals
- Approvals
- ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, LLOYDSREG, RINA, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 125 mm
- Depth
- 96.5 mm
- Net weight
- 27.5 g
Width (inches)0.24 inch
Height (inches)4.921 inch
Depth (inches)3.799 inch
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
Output
- Connection system
- PUSH IN
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.14 mm²
Conductor cross-section, rigid , min.0.14 mm²

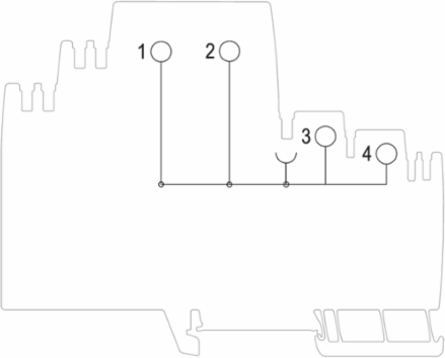

Number of terminals4 (4x +), 2 x 1.5 mm², 2 x 2.5 mm²
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- DEMKO17ATEX1870X
- Certificate no. (cULus)
- E258476
Certificate No. (IECEX)IECEXULD17.0018X
