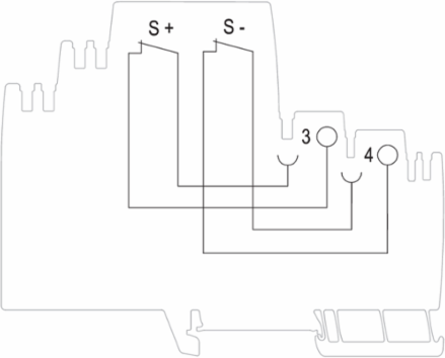

maxGUARD Potential Distributor 12A Total Current Load, IP20 Protection, 2 Terminals

maxGUARD Potential Distributor 12A Total Current Load, IP20 Protection, 2 Terminals - https://images.province-electric.com/WDM-2495100000/amg-dis-ex-weidmuller-medium-alt-xmtz.webp

Documentation & Downloads

Weidmuller 2495100000 maxGUARD Potential Distributor 12A Total Current Load, IP20 Protection, 2 Terminals

MPN: 2495100000
PPN: WDM-2495100000

CAD

$11.82

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Potential distributor

Documentation & Downloads

Specifications

General Data

Conformal coating: Yes

Potential isolation: +, GND

Total current load per potential: 12 A

Current load per contact point12 A

Protection degreeIP20

Probability Of Failure

MTTF: 13,000 Years

Approvals

Approvals: ABS, BURVER, CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, LLOYDSREG, RINA, TUEV

UL File Number Search: E258476

ROHSConform

Dimensions And Weights

Width: 6.1 mm

Height: 125 mm

Depth: 96.5 mm

Net weight: 42.2 g

Width (inches)0.24 inch

Height (inches)4.921 inch

Depth (inches)3.799 inch

Classifications

ETIM 6.0: EC000897

eClass 9.0: 27-14-11-20

eClass 10.0: 27-14-11-20

ETIM 7.0EC000897

eClass 9.127-14-11-20

Output

Connection system: PUSH IN

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Connection Data (Output)

Conductor cross-section, AWG/kcmil , max.: 12

Conductor cross-section, flexible , max.: 2.5 mm²

Conductor cross-section, rigid , max.: 2.5 mm²

Connection system: PUSH IN

Screwdriver blade: 0.6 x 3.5

Conductor cross-section, AWG/kcmil , min.26

Conductor cross-section, flexible , min.0.14 mm²

Conductor cross-section, rigid , min.0.14 mm²

Number of terminals2 (+ / -)

Ratings Iecex/Atex/Cul

Certificate No. (ATEX): DEMKO17ATEX1870X

Certificate no. (cULus): E258476

Certificate No. (IECEX)IECEXULD17.0018X
