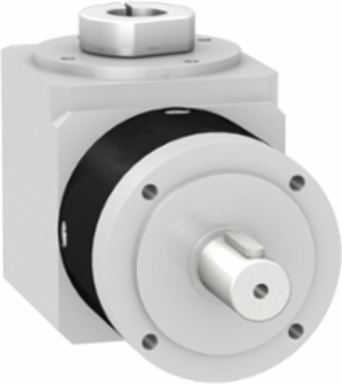

Schneider Electric GBY060040K Angular Gearbox, 60mm, 40:1 Reduction Ratio, 40N.m Torque

MPN: GBY060040K
PPN: SCH-GBY060040K
UNSPSC: 39121409

$1191.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric's angular gearbox is engineered for precision and efficiency in motion control applications. With a 60mm size and a reduction ratio of 40:1, this gearbox is designed to deliver reliable performance while effectively managing torque up to 40N.m. Ideal for automation and control settings, it seamlessly integrates into servo drive systems, ensuring optimal power transmission and enhanced operational capabilities. This gearbox stands out for its robust construction and design, proving essential for achieving smooth and accurate movement in various industrial applications.

Features

3-phase stepper motors stand for precision, power and sturdiness
Lexium SD3 require very little space in the control cabinet
Excellent constant velocity characteristics
High torque available at low speed
Particularly suitable for short-distance positioning
High holding torque makes it an optimum solution in pick and place applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	1900 g

Complementary Attributes

Minimum Operational Altitude	-25.0 m, -25.0 m
Maximum Operational Altitude	90.0 m
Maximum Permitted Torque	64.0 N.m
Maximum Revolution Speed	13000.0 rpm

Maximum Axial Force Fa	450 N 100 rpm, during 30000 hour at 30°C
Maximum Output Torque	64 N.m 100 rpm 30 °C
Maximum Radial Force Fr	340 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
Maximum Torsional Backlash	18 arc.min

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Reduction Ratio	40, 40:1
Carbon Footprint Of The Distribution Phase A4	0.2451436782, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0048093068, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	1 159 kg CO2 eq., 1158.8
Local Publishable Date	2026-01-12
Serviceability	No
Use Carbon Footprint	1158.8
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced
Market Segmentation	Industrial
Compatibility Code	GBY
Device Short Name	GBY
Gear Box Type	straight teeth
Housing Material	black anodized aluminium
Mounting Position	any position
Noise Level	70 dB 1 m, no-load
Peak Stall Torque	64.0 N.m
Product Or Component Type	angular planetary gearbox
Service Life In Hours	30000 h 100 rpm 30 °C
Shaft Moment Of Inertia	0.249 kg.cm²
Static Torque	0.15 N.m
Torsional Rigidity	2.5 N.m/arcmin
Housing Color	black
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Reduction Ratio Per Size	3:1, 4:1, 5:1, 8:1, 12:1, 20:1, 40:1
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.1697783764
Carbon Footprint Of The Manufacturing Phase A1 To A3	8 kg CO2 eq., 7.6600574713
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Continuous Stall Torque	40.0 N.m
Efficiency	89.0 %
Gearbox External Diameter	60 mm
Internal Diameter	14.0 mm
No Load Running Torque	0.05 N.m
Nominal Speed	4500 rpm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Shaft Material	C 45
Software Version	EIME v5.8.1
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 167 kg CO2 eq.
Database Version	2016-11
Length Total	124.5 mm
Customs Code	8483403040
Functional Unit Description	The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	2365.2

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility	ILA 57 mm, 2ILS 57 mm, 2BSH 55 mm, 1, BRS3ILE 66 mm, 1, ILE 66 mm, 2ILA 57 mm, 1, ILS 57 mm, 1, ILS 57 mm, 3, SH3, MH3, ILM
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	1166.8797888326
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2020-07-01
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Operation	-25-90 °C, -25-90 °C
Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP111245EN
Ip Degree Of Protection	shaft output IP54
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP111245EN
Pcr Version	PCR-ed3-EN-2015 04 02
