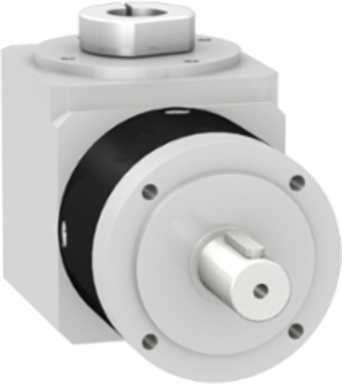

Schneider Electric GBY060005K Angular Gearbox 60mm, Reduction 5:1, 24N.m Torque, Straight Teeth
- MPN: GBY060005K
- PPN: SCH-GBY060005K
CAD
$992.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This angular gearbox from Schneider Electric is engineered for precision in motion control applications. With a reduction ratio of 5:1 and a robust torque capacity of 24N.m, it ensures effective power transmission and efficiency in mechanical systems. Designed with straight teeth, this gearbox incorporates a thoughtful design that enhances durability and performance, making it an ideal choice for various automation and control tasks. Its compact 60mm size allows for seamless integration into systems where space is a premium, positioning it as a reliable component in servo drive assemblies.
Documentation & Downloads
Specifications
Additional
- Maximum Output Torque
- 38 N.m at 100 rpm 30 0C
- Torque
- 24 N.m
- Maximum Radial Force
- 340 N at 100 rpm, mid-distance from output shaft, 30000 h at 30 0C
- Reduction Ratio
- 5:1
- Torsional Rigidity
- 2.3 N.m/arcmin
- Input Diameter
- 14.0 mm (0.55 in)
- Net Weight
- 1.7 kg (3.75 lb)
- Shaft Material
- C 45
- Housing Colour
- Black
- Ambient Temperature for Operation
- -25 to 90 0C (-13 to 194 0F)
- Mounting Position
- Any position
- China RoHS
- Out of China RoHS scope
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111245EN
- Device Short Name
- GBY
- Range Compatibility
- Lexium 32, 52, 62, ILA, ILS, SD3 series
Continuous Output Torque24 N.m at 100 rpm 30 0C (212.42 lbf.in)
Efficiency94 %
Maximum Axial Force450 N at 100 rpm, 30000 h at 30 0C
Maximum Torsional Backlash16 arc.min
Gearbox TypeAngular planetary gearbox with straight teeth
External Diameter60 mm
Shaft Moment Of Inertia0.189 kg.cm
Housing MaterialBlack anodized aluminium
IP Degree of ProtectionIP54 shaft output
Service Life30000 h at 100 rpm 30 0C
Warranty18 months
EU RoHS DirectivePro-active compliance, out of legal scope
PVC FreeYes
Reach RegulationContains SVHC above threshold
Country of OriginGermany
Product CompatibilityCompatible with BMH 70 mm, BSH 55 mm, BRS3, ILA 57 mm, ILS 57 mm, SH3, MH3, ILM series
