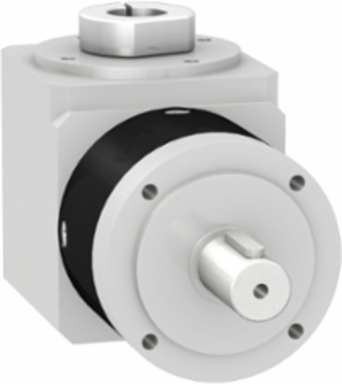

Schneider Electric GBY060003K Angular Gearbox, 60mm, 3:1 Reduction, 14 N.m Torque, 1.7 kg
Schneider Electric GBY060003K Angular Gearbox, 60mm, 3:1 Reduction, 14 N.m Torque, 1.7 kg
- MPN: GBY060003K
- PPN: SCH-GBY060003K
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$963.89/ EA
Description
Engineered for precision in motion control applications, the angular gearbox by Schneider Electric features a compact design with a 60mm profile, making it ideal for various automation and control tasks. With a reduction ratio of 3:1, it allows for optimized torque delivery, providing up to 14 N.m for enhanced performance in demanding environments. Weighing in at just 1.7 kg, this gearbox combines efficiency with reliability, playing a crucial role in the smooth operation of servo drives and ensuring your automated processes run seamlessly.
Specifications
- Maximum Torsional Backlash
- 16 arc.min
- Reduction Ratio
- 3:1
- Maximum Output Torque
- 22 N.m at 100 rpm 30 B0C
- Maximum Radial Force
- 340 N at 100 rpm for 30000 h 30 B0C
- Moment of Inertia
- 0.246 kg.cmB2
- Internal Diameter
- 14.0 mm (0.55 in)
- Mounting Position
- Any position
- Gear Box Teeth Type
- Straight teeth
- Shaft Material
- C 45
- IP Degree of Protection
- Shaft output IP54
- Service Life
- 30000 h at 100 rpm 30 B0C
- Country of Origin
- Germany
Torsional Rigidity2.3 N.m/arcmin
Continuous Output Torque14 N.m at 100 rpm 30 B0C
Maximum Axial Force450 N at 100 rpm for 30000 h 30 B0C
Efficiency94 %
External Diameter60 mm (2.36 in)
Net Weight1.7 kg (3.75 lb)
Gearbox TypeAngular planetary gearbox
Housing MaterialBlack anodized aluminium
Housing ColourBlack
Ambient Temperature Range-25 to 90 B0C (-13 to 194 B0F)
LubricationLubricated for life
