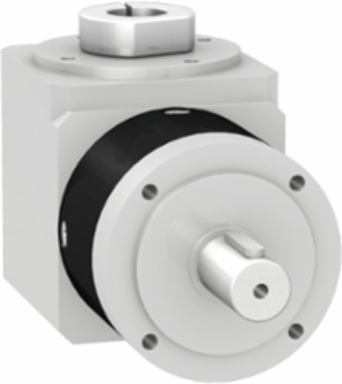

Schneider Electric GBY060004K Angular Planetary Gearbox, Ø 60mm, 4:1 Reduction, 19 N.m Torque
- MPN: GBY060004K
- PPN: SCH-GBY060004K
CAD
$992.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Angular Planetary Gearbox from Schneider Electric is engineered for precision and efficiency in motion control applications. With a compact design featuring a diameter of 60mm and a reduction ratio of 4:1, this gearbox ensures optimal torque performance, capable of delivering up to 19 N.m. Recognized for its reliability, it is an essential component for automation and control solutions, making it ideal for a range of industrial applications where accuracy and durability are critical.
Documentation & Downloads
Specifications
Additional
- Product Or Component Type
- angular planetary gearbox
- Gear Box Teeth Type
- straight teeth
- Continuous Output Torque
- 19 N.m at 100 rpm, 30 0C
- Torque
- 19 N.m
- Maximum Radial Force
- 340 N at 100 rpm during 30000 hours at 30 0C
- Torsional Rigidity
- 2.3 N.m/arcmin
- Diameter
- 60 mm
- Moment of Inertia
- 0.204 kg.cm8
- Mounting Position
- Any position
- Housing Colour
- Black
- Lubrication
- lubricated for life
- IP Degree of Protection
- shaft output IP54
- Service Life
- 30000 h at 100 rpm, 30 0C
Gearbox Typeangular planetary gearbox
Reduction Ratio4:1
Maximum Output Torque30 N.m at 100 rpm, 30 0C
Maximum Axial Force450 N at 100 rpm during 30000 hours at 30 0C
Maximum Torsional Backlash16 arc.min
Efficiency94 %
Internal Diameter14.0 mm
Net Weight1.7 kg
Housing Materialblack anodized aluminium
Shaft MaterialC 45
Noise Level70 dB at 1 m, no-load
Ambient Operating Temperature-25 to 90 0C
Country of OriginGermany (DE)
