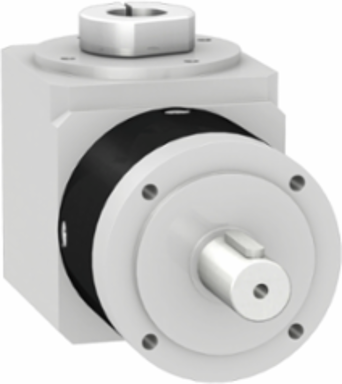

Schneider Electric GBY080004K angular gearbox straight teeth GBY, Lexium, Ø 80mm, reduction 4:1, 13 arc.min, 53N.m
Schneider Electric GBY080004K angular gearbox straight teeth GBY, Lexium, Ø 80mm, reduction 4:1, 13 arc.min, 53N.m
- MPN: GBY080004K
- PPN: SCH-GBY080004K
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1180.29/ EA
Description
angular gearbox straight teeth GBY, Lexium, Ø 80mm, reduction 4:1, 13 arc.min, 53N.m
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-90 °C
- Ip Degree Of Protection
- shaft output IP54
Noise Level73 dB 1 m, no-load
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111245EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Complementary
- Housing Colour
- black
- Maximum Radial Force Fr
- 650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Shaft Moment Of Inertia
- 0.939 kg.cm²
- Shaft Material
- C 45
- Maximum Torsional Backlash
- 13 arc.min
- Service Life In Hours
- 30000 h 100 rpm 30 °C
- Housing Material
- black anodized aluminium
- Mounting Position
- any position
Torsional Rigidity6 N.m/arcmin
Efficiency94 %
Net Weight4.4 kg
Maximum Output Torque85 N.m 100 rpm 30 °C
Internal Diameter19.0 mm
Additional Informationlubricated for life
Continuous Output Torque53 N.m 100 rpm 30 °C
Maximum Axial Force Fa1200 N 100 rpm, during 30000 hour at 30°C
Specifications
- Reduction Ratio
- 4:1
- Product Compatibility
- BMI 70 mm, 2 || BMI 70 mm, 3 || BMH 70 mm, 3 || BSH 70 mm, 3 || BMH 100 mm, 1 || BMH 100 mm, 2 || BSH 100 mm, 1 || BSH 100 mm, 2 || BRS3 || ILS 85 mm, 1 || ILS 85 mm, 2 || ILS 85 mm, 3 || SH3 || MH3 || ILM
- Gearbox External Diameter
- 80 mm
- Device Short Name
- GBY
Product Or Component Typeangular planetary gearbox
Gear Box Typestraight teeth
Range CompatibilityLexium 62 || Lexium SD3 || Lexium 52 || Lexium 62 ILM || Lexium ILS || Lexium 32 || Lexium 32i
