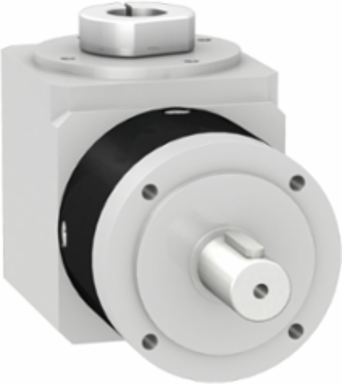

Schneider Electric GBY080008K angular gearbox straight teeth GBY, Lexium, 80mm, reduction 8:1, 13arc.min, 50N.m
Schneider Electric GBY080008K angular gearbox straight teeth GBY, Lexium, 80mm, reduction 8:1, 13arc.min, 50N.m
- MPN: GBY080008K
- PPN: SCH-GBY080008K
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1180.29/ EA
Description
angular gearbox straight teeth GBY, Lexium, 80mm, reduction 8:1, 13arc.min, 50N.m
Specifications
Environment
- Noise Level
- 73 dB 1 m, no-load
- Ip Degree Of Protection
- shaft output IP54
Ambient Air Temperature For Operation-25-90 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111245EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Housing Colour
- black
- Internal Diameter
- 19.0 mm
- Maximum Radial Force Fr
- 650 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Additional Information
- lubricated for life
- Efficiency
- 94 %
- Mounting Position
- any position
- Net Weight
- 4.4 kg
- Maximum Axial Force Fa
- 1200 N 100 rpm, during 30000 hour at 30°C
Maximum Torsional Backlash13 arc.min
Torsional Rigidity6 N.m/arcmin
Service Life In Hours30000 h 100 rpm 30 °C
Housing Materialblack anodized aluminium
Continuous Output Torque50 N.m 100 rpm 30 °C
Shaft Moment Of Inertia0.809 kg.cm²
Shaft MaterialC 45
Maximum Output Torque80 N.m 100 rpm 30 °C
Specifications
- Gear Box Type
- straight teeth
- Gearbox External Diameter
- 80 mm
- Product Or Component Type
- angular planetary gearbox
- Product Compatibility
- BMI 70 mm, 2 || BMH 70 mm, 2 || BMH 70 mm, 3 || BSH 70 mm, 2 || BMH 100 mm, 1 || BSH 100 mm, 1 || BRS3 || ILS 85 mm, 1 || ILS 85 mm, 2 || ILS 85 mm, 3 || SH3 || MH3 || ILM
Reduction Ratio8:1
Range CompatibilityLexium 32i || Lexium SD3 || Lexium 52 || Lexium 62 ILM || Lexium 32 || Lexium 62 || Lexium ILS
Device Short NameGBY
