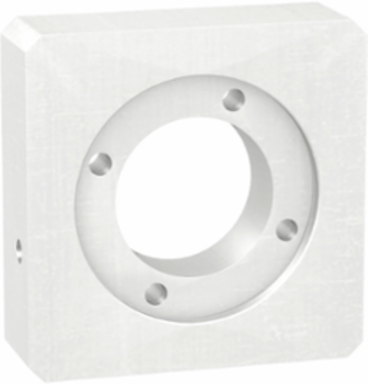

Schneider Electric GBK0800703F adaptation kit, Lexium, size 80, 21mm, for assembly motor and gearbox

MPN: GBK0800703F
PPN: SCH-GBK0800703F

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$141.83/ EA

Qty:

Loading add to cart quantity...

Description

adaptation kit, Lexium, size 80, 21mm, for assembly motor and gearbox

Specifications

Gearbox External Diameter: 80 mm

Range Compatibility: Lexium 62 || Lexium 32i || Lexium 32 || Lexium 52 || Lexium 62 ILM

Product Compatibility: MH3 || BSH || SH3 || BMH || ILM || BMI

Kit Composition: an adaptor plate || screws and bolts for mounting || a shaft end adaptor

Accessory / Separate Part Categoryadaptation accessory

Product Or Component Typeadaptation kit

Device Short NameGBK

Accessory / Separate Part Destinationfor assembly motor and gearbox

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111245EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Number Of Motor Stacks: 2 || 3 || 1

Net Weight: 0.45 kg

Length21.2 mm

Motor Flange Size70 mm

Contractual warranty

Warranty: 18 months
