Hubbell ATS-01088 ATS-01088 (former catalog number ATS-OP-245-13-4RPTP-36)
- MPN: ATS-01088
- UPC: 662620435862
- PPN: HBL-ATS-01088
CAD
$1187.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

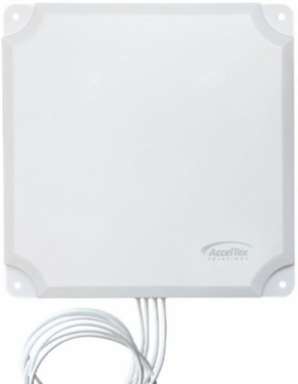

ATS-01088 (former catalog number ATS-OP-245-13-4RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Features integrated mounting holds for flush wall installation
Specifications
Key Specifications
| Country of Origin | China |
|---|---|

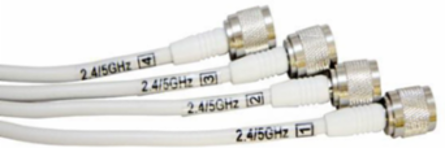

| Cable Type | RG402 Plen |
| Height | 1.4 in |
| Product Type | Patch Antenna |
| Width | 13.8 in |
| Compatibility | Cisco Catalyst 9115e;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |
| Installation Type | Flush Mount to Wall or Articulating Wall/Pole Mount (included) |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 15.750x19.000x15.750 (in) |
| Carton - Number of Sub Packs | 4 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435862 |
| Pallet - GTIN - Package | 70662620435861 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Antenna Gain | 13 dBi |
|---|---|
| Dimensions | 13.8 in x 13.8 in x 1.4 in |
| Length | 13.8 in |
| Voltage Ratio | < 1.5:1, Max 2.0 |
| Windage | 134 mph (216 km/h) |
| Connector Type | RPTNC Plug |
| Impedance | 50 Ohms |
| Isolation Loss | ˃30 dB |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 36.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 4 |
| Pallet Height | 36.250 in |
| Pallet Weight | 327.000 lb. |
