Hubbell ATS-01090 ATS-01090 (former catalog number ATS-OP-245-13-5RPSP-36)
- MPN: ATS-01090
- UPC: 662620435879
- PPN: HBL-ATS-01090
CAD
$1253.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

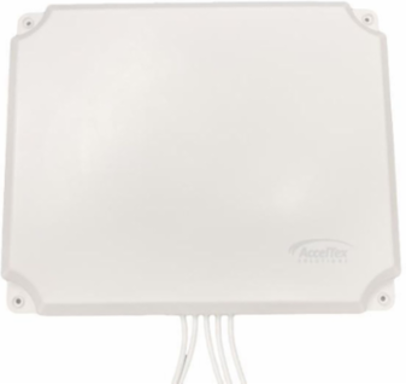

ATS-01090 (former catalog number ATS-OP-245-13-5RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Documentation & Downloads
Specifications
Key Specifications
- Antenna Gain
- 13 dBi
- Country of Origin
- CN
- Height
- 1.6 in
- Product Type
- Patch Antenna
- Width
- 11.8 in
- Application
- Indoor Wi-Fi, Outdoor Wi-Fi
- Connector Type
- RPSMA Plug
- Impedance
- 50 Ohms
- Isolation Loss
- ˃30 dB
- Class Code
- A62
- Harmonization Code
- 8517710000
- Sub Class Code
- A62A620
- Technology
- 802.11ac, 802.11ax, 802.11n
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620435879
Cable TypeRG402 Plen
Dimensions11.8 in x 11.8 in x 1.6 in
Length11.8 in
Voltage Ratio≤1.5:1, Max 2.0
Windage134 mph (216 km/h)
CompatibilityExtreme AP310E
Frequency Rating2.4-2.485/5.15-5.85 GHz
Installation TypeFlush Mount to Wall or Articulating Wall/Pole Mount (included)
Operating Temperature-40 to 70 °C
Freight Class Code15730000
Image Actual Or RepresentativeA
Indoor/OutdoorIndoor or Outdoor
Base Unit of MeasureEA
