Hubbell ATS-01113 ATS-01113 (former catalog number ATS-OP-245-7-6RPSP-36)
- MPN: ATS-01113
- UPC: 662620436050
- PPN: HBL-ATS-01113
CAD
$1029.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

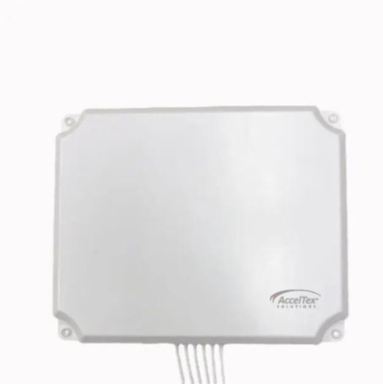

ATS-01113 (former catalog number ATS-OP-245-7-6RPSP-36). The AccelTex Solutions dual band indoor/outdoor 6-Element patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- 6-element dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Integrated mounting holes for flush wall installation
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-200 |
| Height | 1.4 in |
| Product Type | Patch Antenna |
| Windage | 134 mph (216 km/h) |
| Compatibility | Arista C-230E;Aruba/HP AP-518;Mist AP43e |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |
| Operating Temperature | -40 to 70 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620436050 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Antenna Gain | 7/6 dBi |
|---|---|
| Dimensions | 12.6 in x 6.7 in x 1.4 in |
| Length | 12.6 in |
| Width | 6.7 in |
| Application | Indoor Wi-Fi, Outdoor Wi-Fi |
| Connector Type | RPSMA Plug |
| Installation Type | Flush Mount to Wall or Articulating Mount (included) |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 12.500x20.000x18.125 (in) |
| Pallet Height | 42.500 in |
| Pallet Weight | 472.000 lb. |
