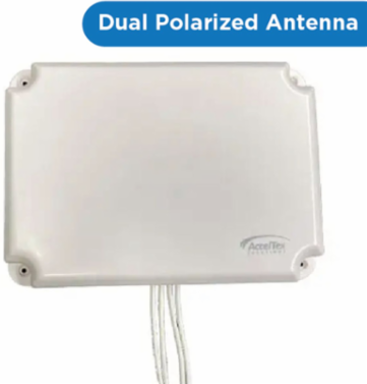

Hubbell ATS-02530 ATS-02530 (former catalog number ATS-OP-245-7D-4NP-36)
- MPN: ATS-02530
- UPC: 662620437514
- PPN: HBL-ATS-02530
CAD
$1002.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATS-02530 (former catalog number ATS-OP-245-7D-4NP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Optimized for dual-band Wi-Fi operation on 2.4 and 5 GHz
- Includes integrated mounting holes for flush wall installation
- Suitable for a broad range of directional RF applications
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-195 |
| Height | 1.6 in |
| Product Type | Patch Antenna |
| Width | 8.5 in |
| Application | Indoor Wi-Fi, Outdoor Wi-Fi |
| Connector Type | N-Style Plug |
| Impedance | 50 Ohms |
| Isolation Loss | ˃30 dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | (in) |
| Antenna Gain | 7 dBi |
|---|---|
| Dimensions | 12 in x 8.5 in x 1.6 in |
| Length | 12 in |
| Voltage Ratio | ≤1.5:1, Max 2.0 |
| Windage | 134 mph (216 km/h) |
| Compatibility | Aruba/HP AP-584;Cisco 1562e;Cisco 1562ps;Cisco 1572eac;Cisco 1572ec;Cisco CW9163E;Cisco MR76;Cisco MR86 |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |
| Installation Type | Flush Mount to Wall or Articulating Wall/Pole Mount (included) |
| Operating Temperature | -40 to 70 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620437514 |
