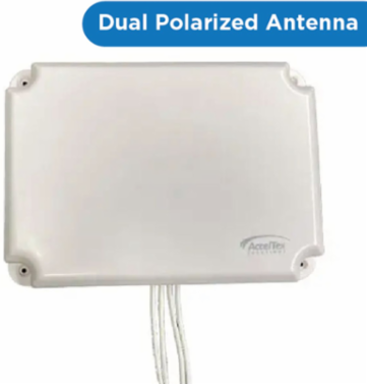

Hubbell ATS-01116 ATS-01116 (former catalog number ATS-OP-245-7D-4RPSP-36)

MPN: ATS-01116
UPC: 662620436074
PPN: HBL-ATS-01116

$1002.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ATS-01116 (former catalog number ATS-OP-245-7D-4RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

Features

Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
Includes integrated mounting holes for flush wall installation

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Height	1.6 in
Product Type	Patch Antenna
Width	8.5 in
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	RPSMA Plug
Impedance	50 Ohms
Isolation Loss	˃30 dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	7 dBi
Dimensions	12 in x 8.5 in x 1.6 in
Length	12 in
Voltage Ratio	≤1.5:1, Max 2.0
Windage	134 mph (216 km/h)
Compatibility	Aruba/HP AP-514;Aruba/HP AP-534
Frequency Rating	2.4-2.485/5.15-5.85 GHz
Installation Type	Flush Mount to Wall or Articulating Wall/Pole Mount (included)
Operating Temperature	-40 to 70 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620436074
