Hubbell ATS-01117 ATS-01117 (former catalog number ATS-OP-245-7D-4RPTP-36)
- MPN: ATS-01117
- UPC: 662620436081
- PPN: HBL-ATS-01117
CAD
$1002.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

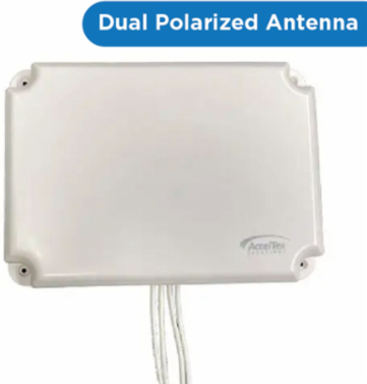

ATS-01117 (former catalog number ATS-OP-245-7D-4RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes integrated mounting holes for flush wall installation
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Height
- 1.6 in
- Product Type
- Patch Antenna
- Width
- 8.5 in
- Application
- Indoor Wi-Fi, Outdoor Wi-Fi
- Frequency Rating
- 2.4-2.485/5.15-5.85 GHz
- Installation Type
- Flush Mount to Wall or Articulating Wall/Pole Mount (included)
- Operating Temperature
- -40 to 70 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620436081
Antenna Gain7 dBi
Dimensions12 in x 8.5 in x 1.6 in
Length12 in
Voltage Ratio< 1.5:1, Max 2.0
Windage134 mph (216 km/h)
CompatibilityCisco Catalyst 9115e;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP
Impedance50 Ohms
Isolation Loss˃30 dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
