Hubbell ATS-01121 ATS-01121 (former catalog number ATS-OP-245-7D-6RPSP-36)

MPN: ATS-01121
UPC: 662620436111
PPN: HBL-ATS-01121

$1156.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

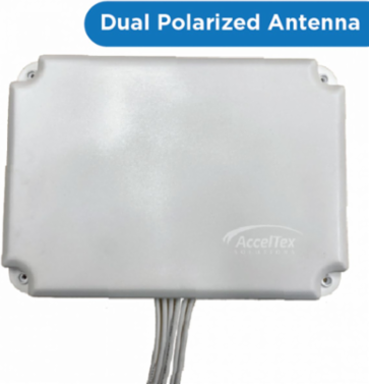

ATS-01121 (former catalog number ATS-OP-245-7D-6RPSP-36). AccelTex Solutions 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with RPSMA Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

Features

6-element dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
Features RPSMA Plug connector for directional indoor and outdoor coverage

Specifications

Key Specifications

Country of Origin	China
Cable Type	RG402 Plen
Height	1.6 in
Product Type	Patch Antenna
Width	8.7 in
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	RPSMA Plug
Impedance	50 Ohms
Isolation Loss	˃30 dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	17.375x23.500x18.750 (in)
Pallet Height	39.375 in
Pallet Weight	332.000 lb.

Antenna Gain	7 dBi
Dimensions	12.2 in x 8.7 in x 1.6 in
Length	12.2 in
Voltage Ratio	≤1.5:1, Max 2.0
Windage	134 mph (216 km/h)
Compatibility	Arista C-230E;Aruba/HP AP-518;Mist AP43e
Frequency Rating	2.4-2.485/5.15-5.85 GHz
Installation Type	Flush Mount to Wall or Articulating Mount (included)
Operating Temperature	-40 to 70 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620436111
Pallet Length	20.000 in
Pallet Width	42.000 in
