Hubbell ATS-03022 ATS-03022 (former catalog number ATS-OP-245-810-6NP-36-V2)
- MPN: ATS-03022
- UPC: 662620439242
- PPN: HBL-ATS-03022
CAD
$780.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

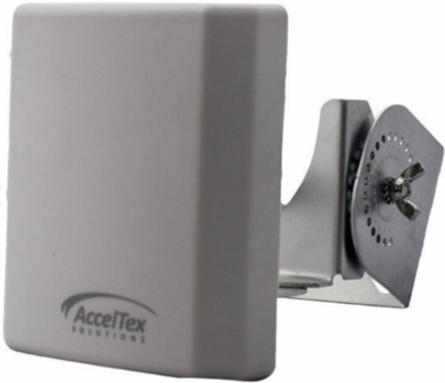

ATS-03022 (former catalog number ATS-OP-245-810-6NP-36-V2). AccelTex Solutions High Gain 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with N-Style Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
Features
- High-gain, 6-element dual-band design for 2.4 and 5 GHz Wi-Fi
- Provides directional RF coverage for indoor and outdoor spaces
- Features an N-Style Plug connector for enterprise-class AP compatibility
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Dimensions
- 8.1 in x 7 in x 2 in
- Length
- 8.1 in
- Protection Type
- DC Grounded
- Width
- 7 in
- Application
- Indoor Wi-Fi, Outdoor Wi-Fi
- Frequency Rating
- 2.4-2.5/4.9-5.85 GHz
- Installation Type
- Threaded Bolt with Nut and Articulating Wall/Pole Mount (included)
- Operating Temperature
- -40 to 65 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620439242
Antenna Gain8/10 dBi
Diameter - Pole2 in
Height2 in
Product TypePatch Antenna
Voltage Ratio< 2.0:1
Windage130 mph (210 km/h)
CompatibilityArista O-235E;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E
Impedance50 Ohms
Isolation Loss˃20dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
