Hubbell ATS-03021 ATS-03021 (former catalog number ATS-OP-245-810-6RPSP-36-V2)

MPN: ATS-03021
UPC: 662620439235
PPN: HBL-ATS-03021

$780.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

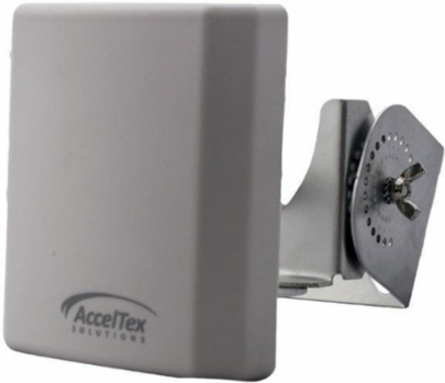

ATS-03021 (former catalog number ATS-OP-245-810-6RPSP-36-V2). AccelTex Solutions High Gain 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with RPSMA Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

Features

High-gain, 6-element dual-band design for 2.4 and 5 GHz Wi-Fi
Provides directional RF coverage for indoor and outdoor spaces
Features an RPSMA Plug connector for enterprise-class AP compatibility

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Dimensions	8.1 in x 7 in x 2 in
Length	8.1 in
Protection Type	DC Grounded
Width	7 in
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	RPSMA Plug
Impedance	50 Ohms
Isolation Loss	˃20dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	8/10 dBi
Diameter - Pole	2 in
Height	2 in
Product Type	Patch Antenna
Voltage Ratio	< 2.0:1
Windage	130 mph (210 km/h)
Compatibility	Arista C-230E;Aruba/HP AP-518;Mist AP43e
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Installation Type	Threaded Bolt with Nut and Articulating Wall/Pole Mount (included)
Operating Temperature	-40 to 65 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620439235
