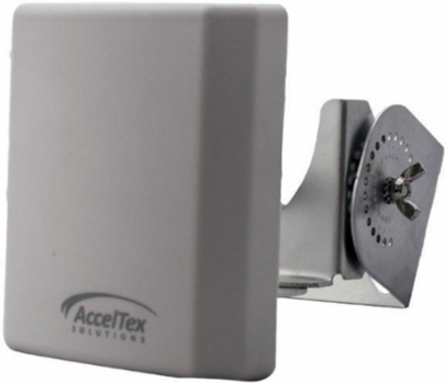

Hubbell ATS-03023 ATS-03023 (former catalog number ATS-OP-245-810-6RPTP-36-V2)

MPN: ATS-03023
UPC: 662620439259
PPN: HBL-ATS-03023

$780.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ATS-03023 (former catalog number ATS-OP-245-810-6RPTP-36-V2). AccelTex Solutions High Gain 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with RPTNC Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.

Features

Provides directional RF coverage for indoor and outdoor use
Features high-gain,6-element design with RPTNC Plug connector.

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Dimensions	8.1 in x 7 in x 2 in
Length	8.1 in
Protection Type	DC Grounded
Width	7 in
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	RPTNC Plug
Impedance	50 Ohms
Isolation Loss	˃20dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	8/10 dBi
Diameter - Pole	2 in
Height	2 in
Product Type	Patch Antenna
Voltage Ratio	< 2.0:1
Windage	130 mph (210 km/h)
Compatibility	Cisco MR46E
Frequency Rating	2.4-2.5/4.9-5.85 GHz
Installation Type	Threaded Bolt with Nut and Articulating Wall/Pole Mount (included)
Operating Temperature	-40 to 65 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620439259
