Hubbell ATS-01123 ATS-01123 (former catalog number ATS-OP-245-8-4RPSP-36)

MPN: ATS-01123
UPC: 662620436135
PPN: HBL-ATS-01123

$1110.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

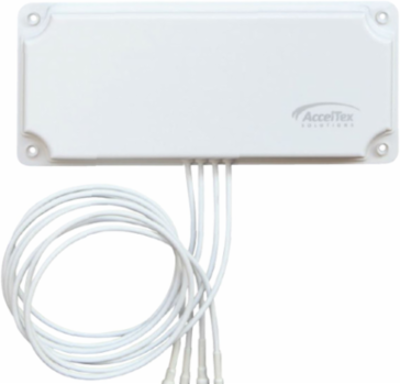

ATS-01123 (former catalog number ATS-OP-245-8-4RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. We call this one our "Half Warehouse" antenna.

Features

Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
Integrated mounting holes for flush wall installation
Ideal for "Half Warehouse" coverage

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Height	1.4 in
Product Type	Patch Antenna
Compatibility	Aruba/HP AP-514;Aruba/HP AP-534
Frequency Rating	2.4-2.5/5.1-5.85 GHz
Isolation Loss	˃20dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620436135

Antenna Gain	8 dBi
Dimensions	12.6 in x 6.7 in x 1.4 in
Length	12.6 in
Width	6.7 in
Connector Type	RPSMA
Impedance	50 Ohms
Operating Temperature	-40 to 70 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)
